EXCELLING IN PRODUCT SAFETY
WITH CREATIVE PACKAGING

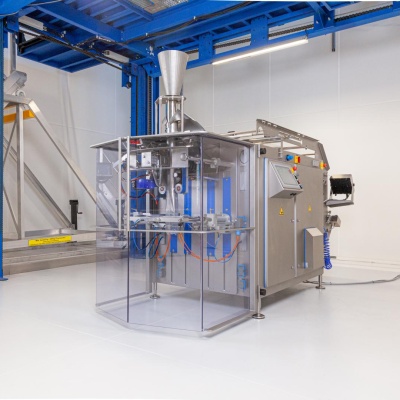

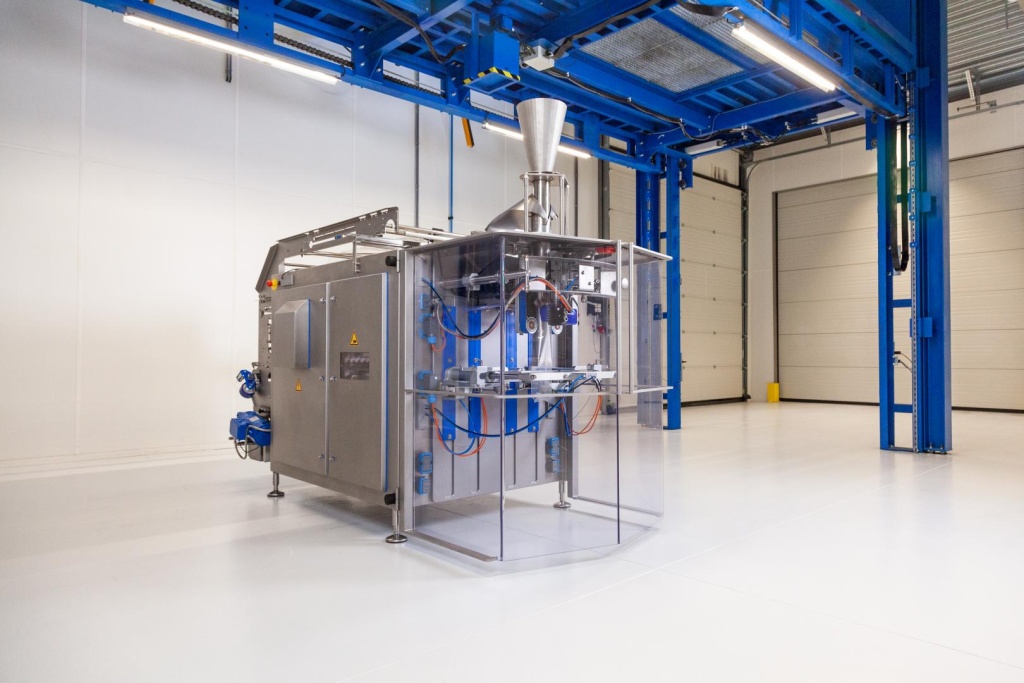

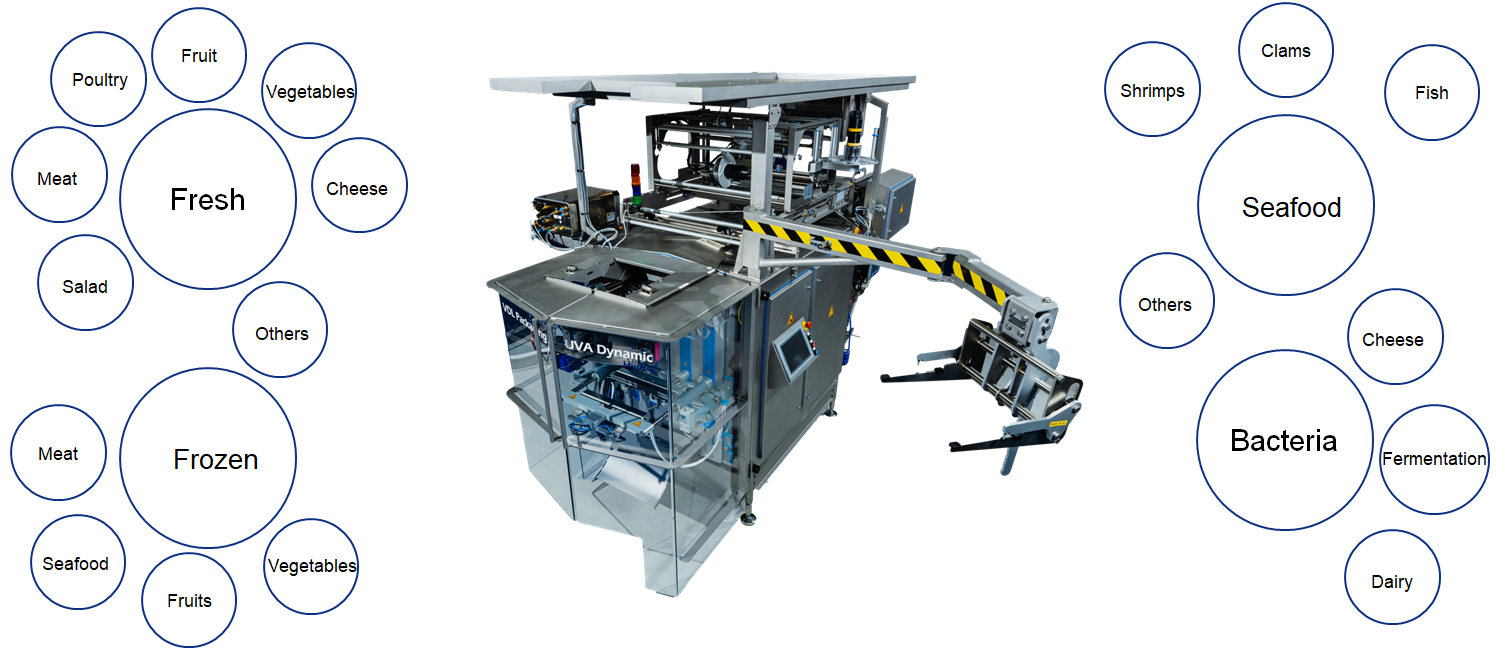

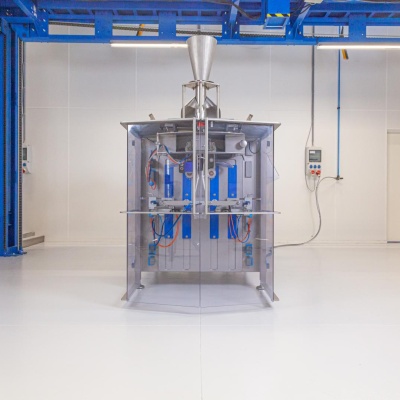

The UVA Dynamic Hydro is an advanced, and immensely flexible bagmaker, offering the ability to expand in the field where market requirements dictate.
Such flexibility has been a goal of many VFFS manufacturers but no manufacturer except for VDL Packaging has been able to truly succeed. The UVA Dynamic Hydro, like its predecessors the NEWTON and LIMA, is designed with true expandability as the number one priority. VDL Packaging has for many years concentrated on developing options for a variety of markets that can be added onto a basic machine, either during the base machine production or after installation at the customer’s plant. These options include four corner seal, air deflation, press to close zipper, Slider zipper and a lot more.
Washdown machine
It's just Fast!
Short changeover time
REAL IP66
WASHDOWN CAPABILITIES
With the UVA Dynamic Hydro this flexibility is further enhanced as the base machine and several optional modules will be available in true IP66 or NEMA 4 execution.
Many competitors in the market have used “washdown hygienic” in their marketing, but do not be fooled as hygienic is very different from washdown. Ingress protection (IP rating) is the most common used method to rate equipment for washdown application. But also here we have seen “IP 69K rated components” rather than full washdown.

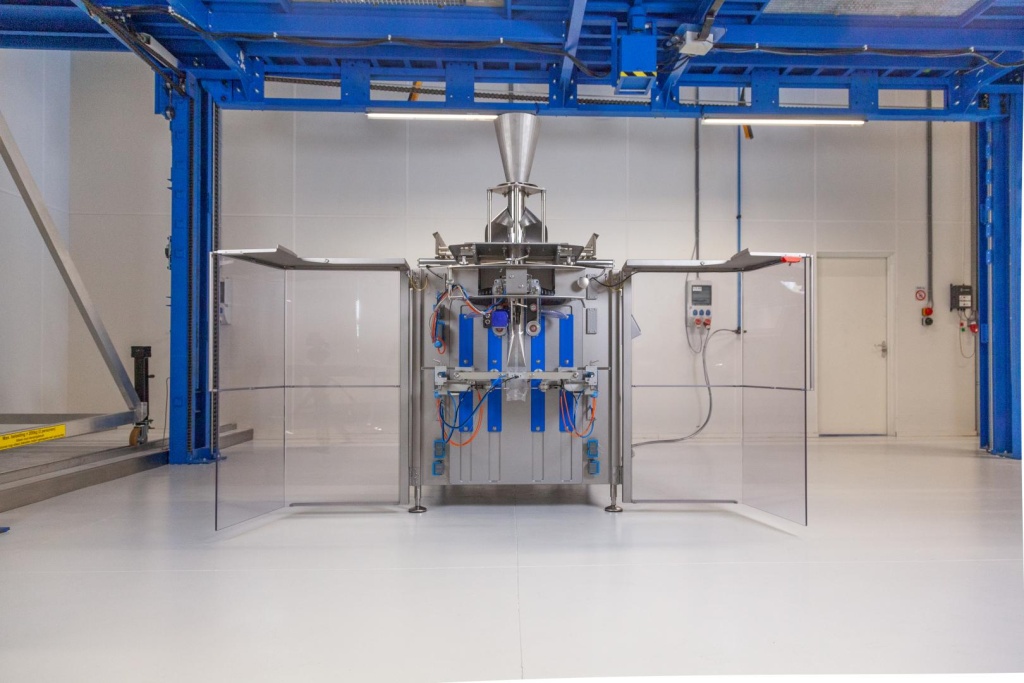

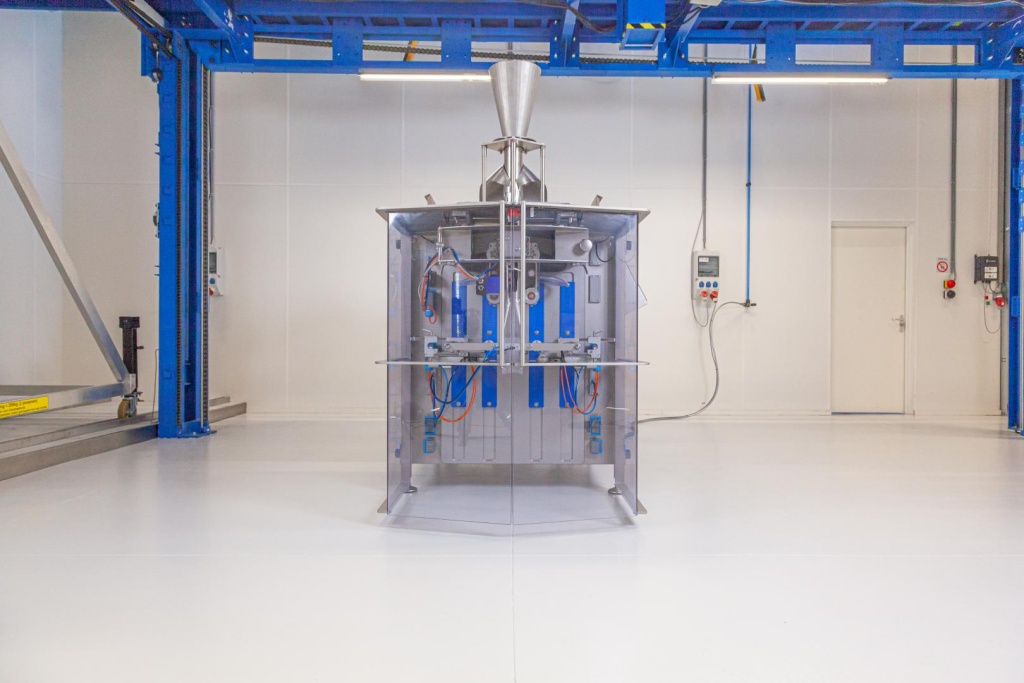

This is where VDL Packaging wants to make a difference by offering a full washdown IP66 rated product. We feature a closed cabinet design to reduce product and water contact to a minimum. Every exposed part is thoroughly designed to withstand high and direct water pressure as well as any non aggressive disinfectant as part of the cleaning cycle.
UVA Dynamic Hydro Bag Styles and Dimensions
| Bag Designs |  |
 |
 |
 |
 |
 |
 |
|
| Blockbottom | Gusseted | Pillow | Bags with Cornerseal unit: |
Corner Seal |
Cornerseal | Doy Style | Push Pop | |
| Max film width: | 840mm | 840mm | 840mm | 840mm | 840mm | 840mm | 840mm | |
| Max. bag width: | 270mm | 270mm | 400mm | On request | 270mm | 300mm | On request | |
| Min. bag width: | 45mm | 45mm | 50mm | 55mm | 55mm | 55mm | 55mm | |
| Max. bag depth: | 150mm | 150mm | 150mm | 150 mm | 100 mm | 150mm | ||
| Min. bag depth: | 30mm | 30mm | 44mm | 44mm | 80mm | 60mm | ||
| Max. cut-off length height: | 600mm | 600mm | 600mm | 600 mm | 600mm | 300mm | 600mm | |
| Min. cut-off length bag height: | 100mm | 100mm | 60mm | 60mm | 100mm | 100mm | 100mm | |
| Max. CS size: | 6.5mm | 6.5mm | 6.5mm | 6.5mm | ||||
| Min. CS size: | 5mm | 5mm | 5mm | 5mm |
UVA Dynamic Hydro Machine Specifications
| Technology | Continious Motion |
| Frame | Closed Stanless Steel Frame |
| Jaw Width | 320 or 400 mm / 12.6 or 15.7 in |

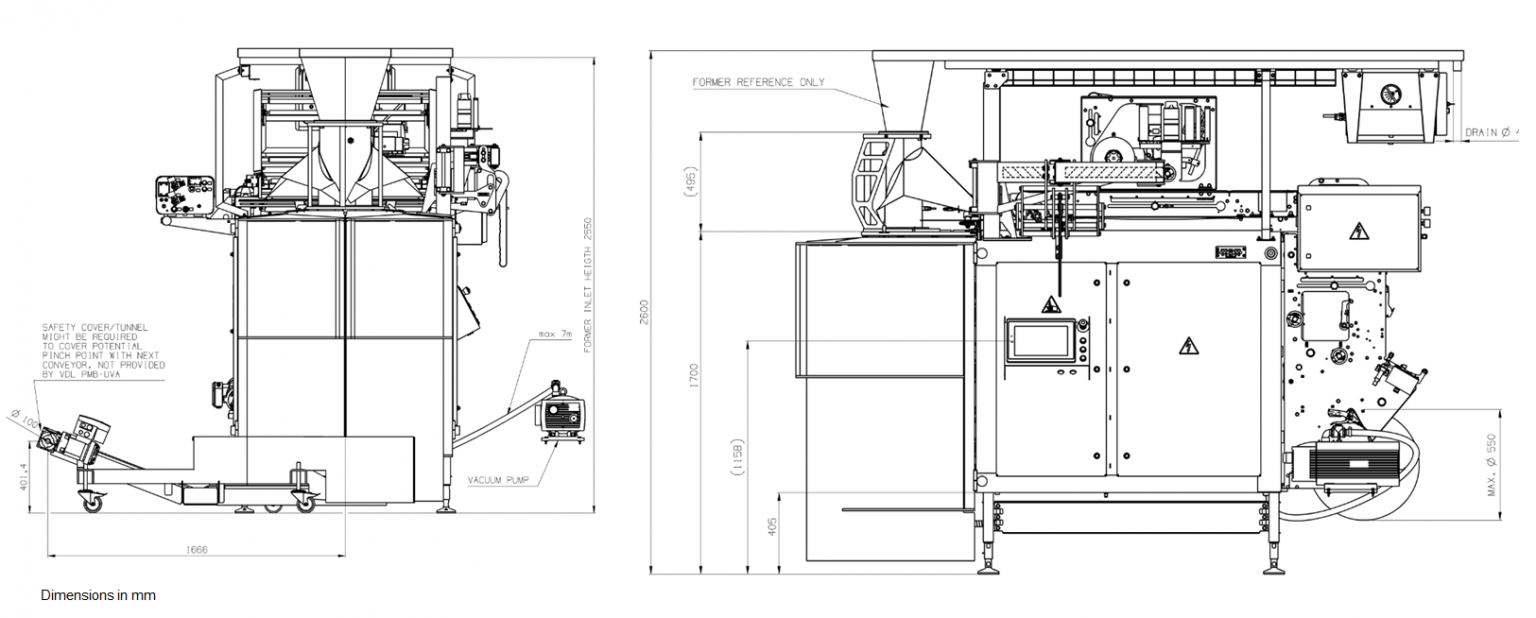

| Machine Dimensions (w/d/h) |
1,500 x 3,256 x 1,655 mm / 59 x 128.2 x 65.2 Inch |
| Machine Weight (Approx.) | 840 kg / 1852 lbs |
| Power Supply | 10 / 12.5 kVA |
| Control System | Allen Bradley 5500 CompactLogix 12" HMI touch panel |
| Max. Seal Pressure | 6 kN |
| Compressed Air Requirement | 6 bar / 87 psi |
| Mechanical Bag output (BPM) | 150 bags per minute |
| Max. Film Roll diameter | 550 mm / 21.7 inch |
| Max. Film Width | 850 mm / 33.5 inch |
| IP Standard | IP66 Washdown |

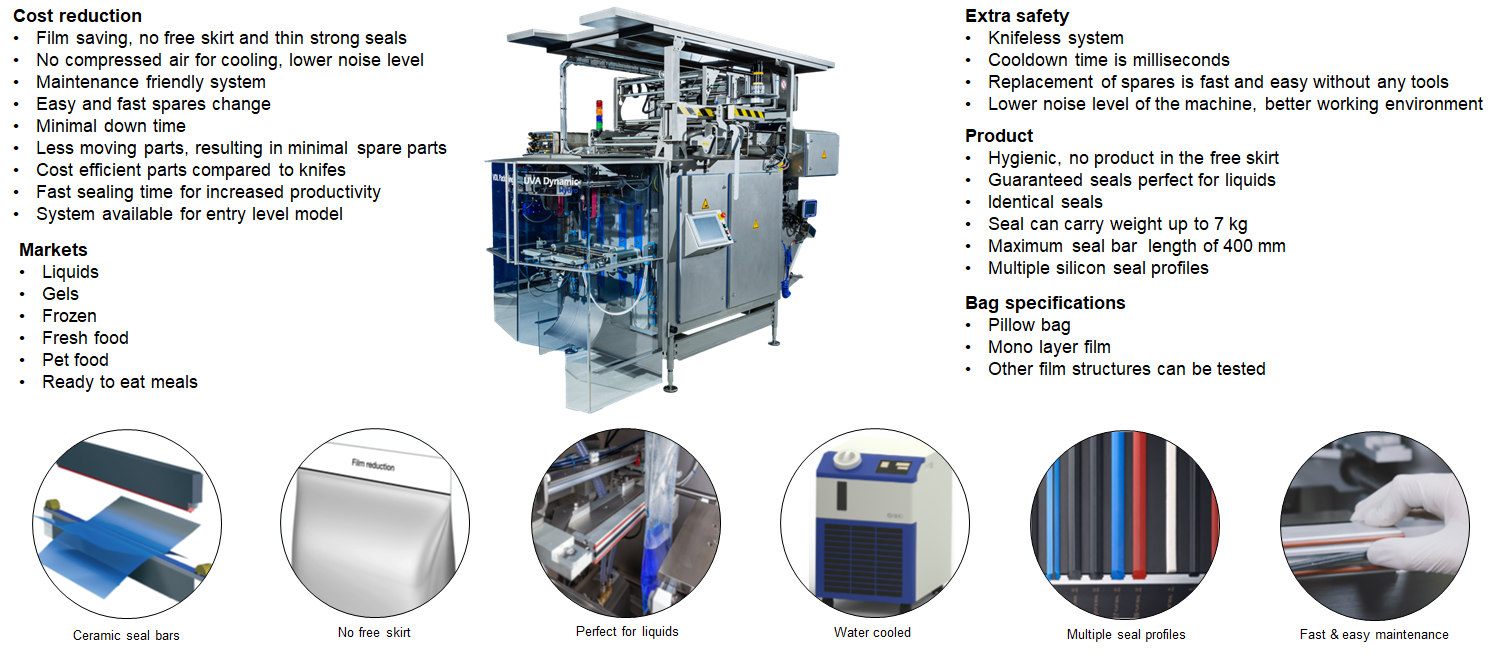

| Sealing Options | Heat seal and optional Ceramic seal |
*The UVA Dynamic Hydro is IP66-rated, excluding third-party equipment and peripherals
UVA Dynamic Hydro Machine Options
| Modules | Bag style options | Former options |
| Automatic Film Tracking | Cornerseal unit | Dust Extraction |
| Long Seal Cooling | Gusset Mechanism | Inner Filling Tube |
| Printer | Zipper Unit | Gas Flushing Tube |
| Encoder | Easy Opening options | Stainless Steel Former sets |
| Label Applicator | Hole Punch (Euroslot/Sombrero or round) | |
| Splice Detection | Chain bag | |
| Air Deflator | Re-closeable label | |
| Product Catch Plates | ||
| Static Eliminator | ||
| Remote Diagnostics | ||
| Protection Plate above machine | ||
| Ceramic Sealing | ||
| Venturi System (instead of vacuum pump) | ||
| Heat Exchanger | ||
| Stainless steel Film Reel Spindle | ||
| Stainless steel mesh / Perforator Doors |
UVA DYNAMIC RANGE
As with every VDL Packaging bagmaker, we aim to provide the most value in a standard machine, with the continued option to expand and upgrade our modular design at any time. Our brochure outlines how our equipment (based on over 80 years of experience) has now been upgraded to FULL WASHDOWN principles. We have always designed, engineered and manufactured all of our machines ourselves while also relying on best in practice components as from Rockwell Allen Bradley®. We continue to stand behind our innovations and proprietary technology as we’ve always have, and can take complete ownership of your complete packaging project or integrate our VDL Packaging equipment into an existing line.
