COMPACT, CAPABLE
GAME-CHANGING
The UVA Newton TX is a next-generation vertical form-fill-seal (VFFS) machine designed to produce stand-up pouches, including DOY-style bags, with the efficiency and quality of a horizontal pouch maker, but in a much smaller footprint.

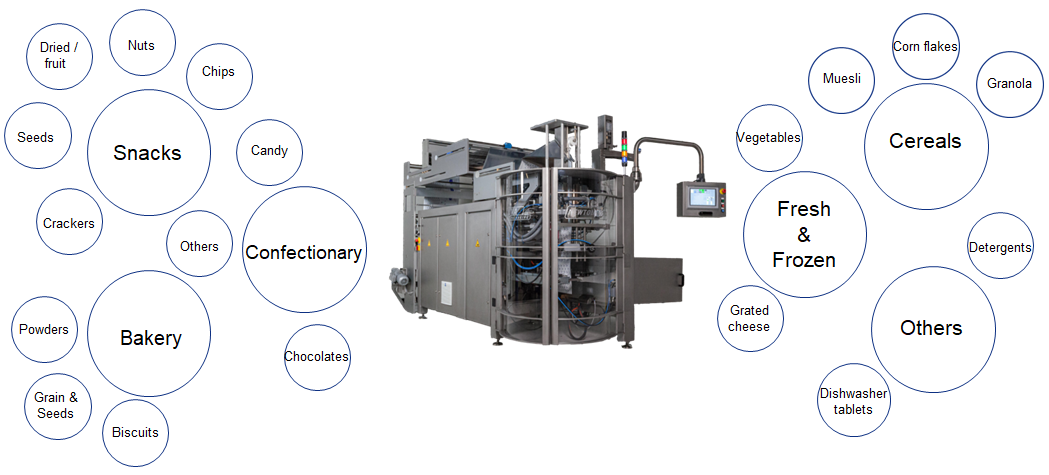

Ideal For:
From food to non-food applications, the UVA Newton TX is perfect for industries that demand speed, flexibility, and space efficiency without compromising on quality.
Why Choose the Newton TX?
- 70% Smaller Footprint than traditional horizontal machines (just 8 m²)
- 50% Lower Capital Investment (CAPEX)
- High-Speed Output: Up to 120 bags per minute
- Versatile Bag Styles: Supports multiple formats and reclosable options
- Fast Changeovers: Ideal for flexible production environments
- Smart Intermittent Motion
Built on proven intermittent motion technology, the UVA Newton TX combines simplicity, reliability, and flexibility. It’s powered by advanced servo technology, enabling:
- Seamless integration of various reclosable features
- Compatibility with different film types
- Production of multiple bag styles—all on one machine
UVA Newton TX Bagstyles and Dimensions
| Bag Designs |  |
 |
 |
 |
 |
 |
 |
|
| Blockbottom | Gusseted | Pillow | Bags with Cornerseal unit: |
3 Sided Pillow |
Cornerseal | Doy Style | Push Pop |
| Min. bag size (w/d/h) | 70 x 50 x 50 mm / 2.8 x 2 x 2 inch (standard position for pillow) |
| Max. bag size (w/d/h) | 400 x 150 x 600mm / 15.7 x 5.9 x 23.6 inch (standard position for pillow) |
| Min. bag size (w/d/h) | 150 x 50 x 165mm / 5.9 x 2 x 6.5 inch (turned position for Doy) |
| Max. bag size (w/d/h) | 600 x 110 x 340mm / 23.6 x 4.3 x 15.7 inch (turned position for Doy) |
UVA Newton TX Machine Specifications
| Technology | Intermittent Motion |
| Frame | Stanless Steel Frame |
| Jaw Width | 400 mm / 15.7 in |

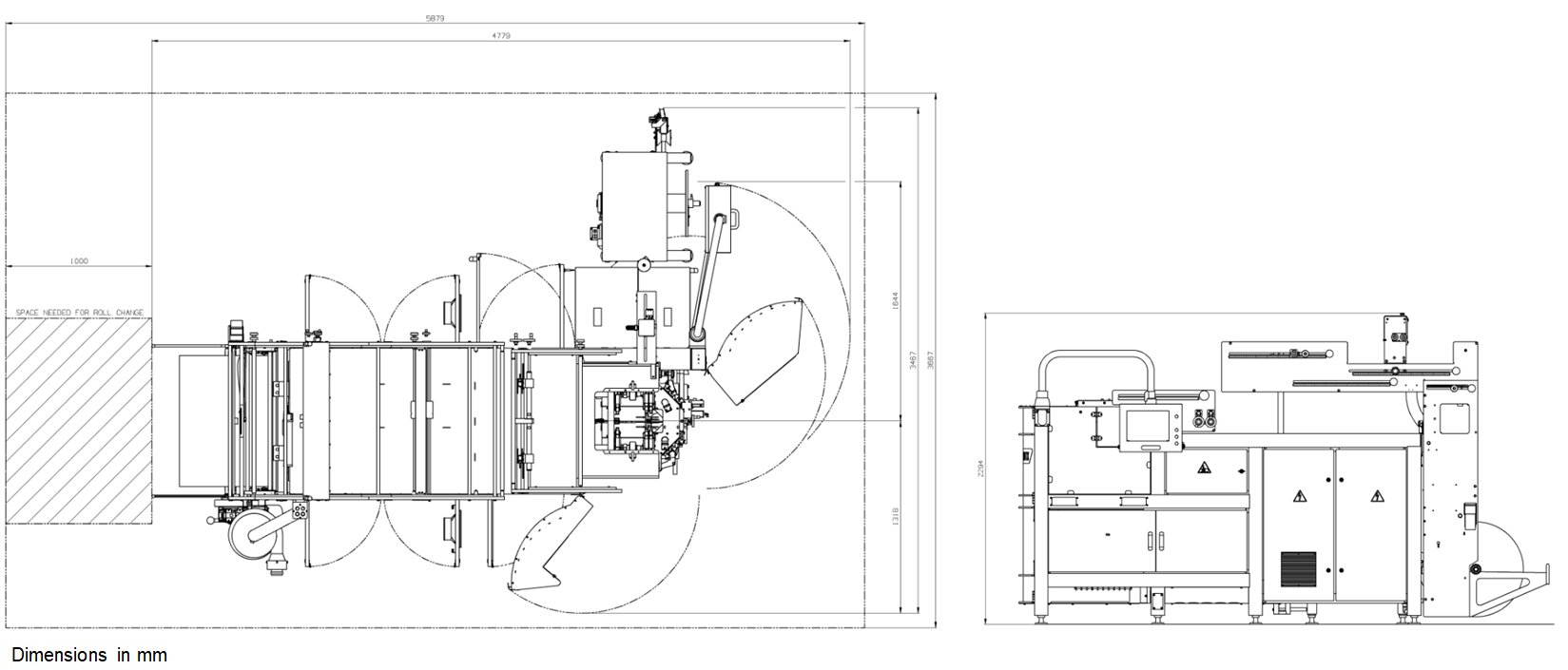

| Machine Dimensions (w/d/h) |
2,165 x 1,875 x 2,294 mm / 85.2 x 73.8 x 90.3 Inch |
| Machine Weight (Approx.) | 1,350 kg / 2976 lbs |
| Power Supply | 10 / 12.5 kVA |
| Control System | Allen Bradley 5500 CompactLogix 12" HMI touch panel |
| Max. Seal Pressure | 8 kN |
| Compressed Air Requirement | 6 bar / 87 psi |
| Mechanical Bag output (BPM) | 100 bags per minute |
| Max. Film Roll diameter | 700 mm / 27.6 inch |
| Max. Film Width | 840 mm / 33 inch |
| IP Standard | IP54* |
| Sealing Options | Heat seal |
*The UVA Newton is IP54-rated, excluding third-party equipment and peripherals
