EXCELLING IN HYGIENIC PACKAGING
WITH PURE PERFORMANCE

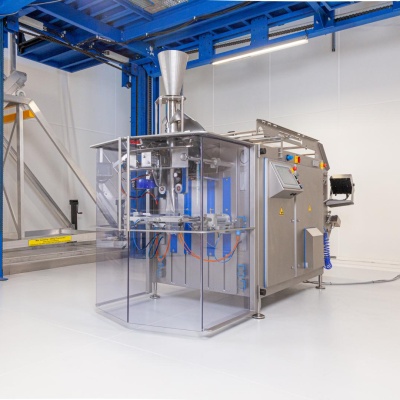

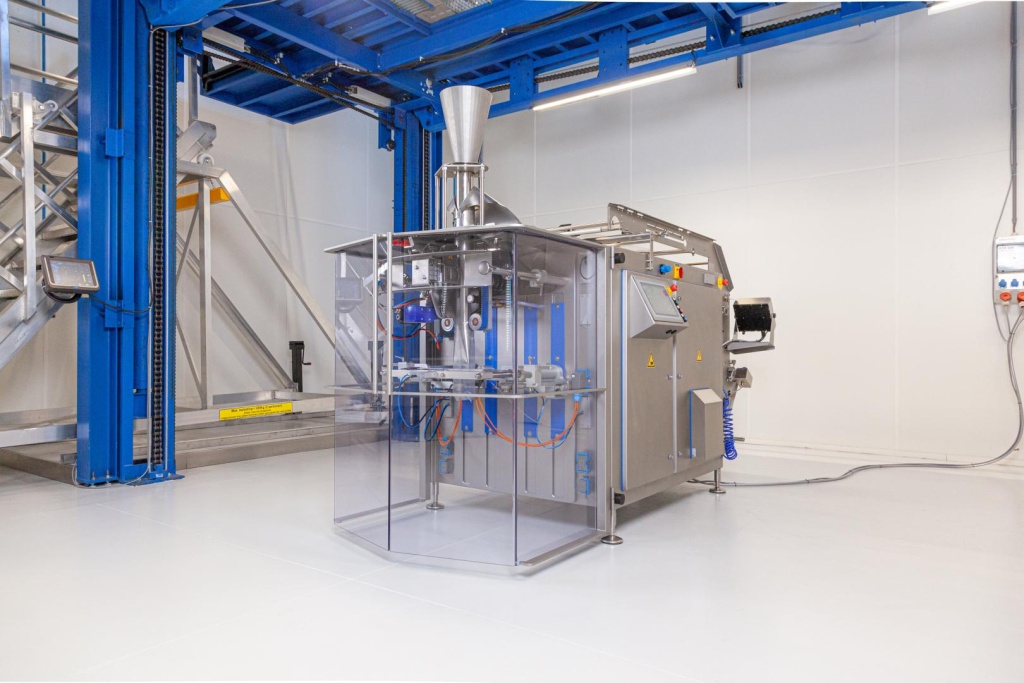

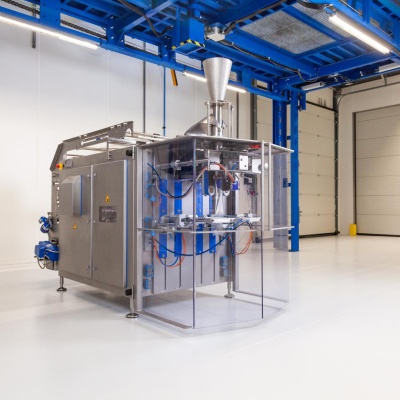

The UVA Dynamic Pure is an advanced, and immensely flexible bagmaker, offering the ability to expand in the field where market requirements dictate.
Such flexibility has been a goal of many VFFS manufacturers but no manufacturer except for VDL Packaging has been able to truly succeed. The UVA Dynamic Pure, like its predecessors the NEWTON and LIMA, is designed with true expandability as the number one priority. VDL Packaging has for many years concentrated on developing options for a variety of markets that can be added onto a basic machine, either during the base machine production or after installation at the customer’s plant. These options include four corner seal, air deflation, press to close zipper, Slider zipper and a host more.
With the UVA Dynamic Pure this flexibility is further enhanced as the base machine and several optional modules will be available in true IP55 execution.
Fully Stainless-Steel Body
It's just Fast!
Short changeover time
EXTREMLY DYNAMIC
AND ALWAYS UP FOR A CHALLENGE
Yes, we love a challenge! We received a request for packing Molokiha in a 400-gram pillow bag with a speed of 70 bags per minute. We took our continuous motion UVA Dynamic Pure (Hygienic IP55) VFFS machine with a ceramic seal system and a Pi Precision liquid dosing pump.
Molokhia is a vegetable that is comparable to spinach leaves in liquids. The combination of these machines is a perfect match to reach this goal. We can get higher speeds with a mono PE film structure.

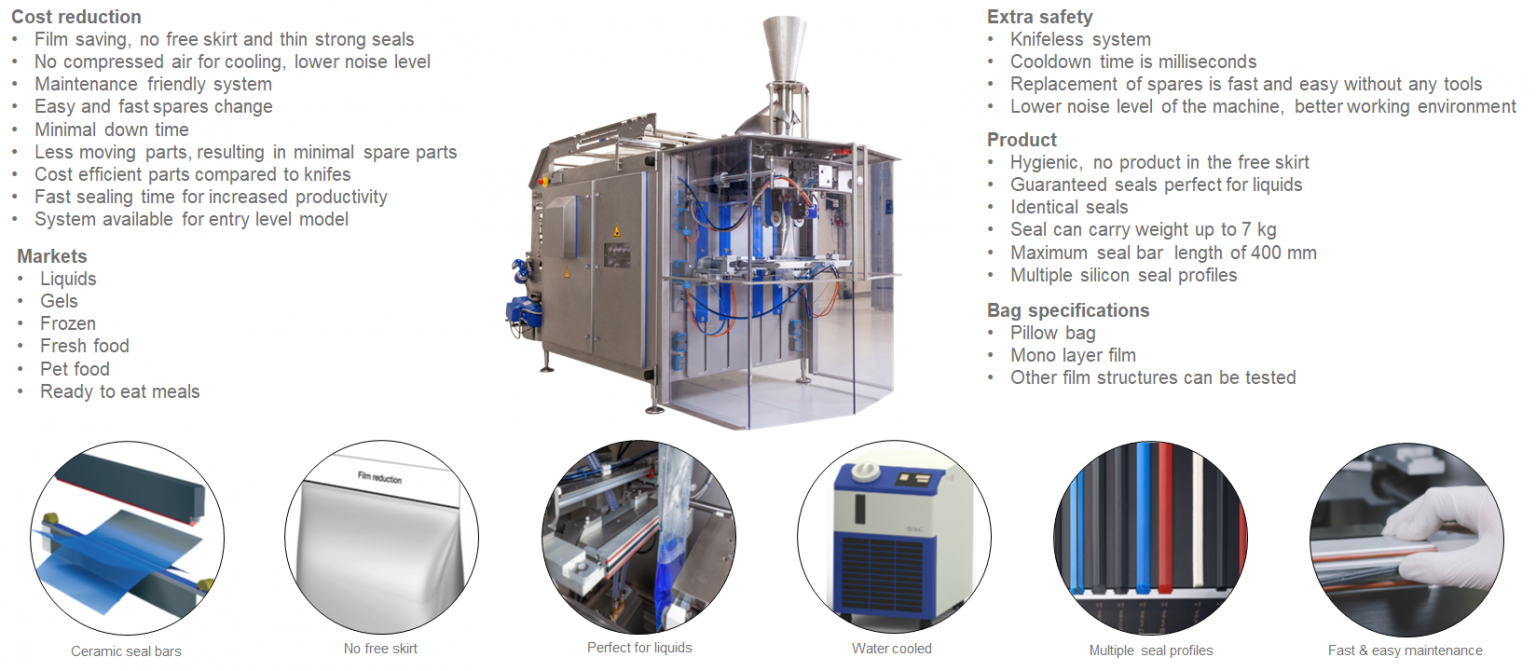

Besides the speed, the ceramic seal system is a perfect way to reach your sustainable goals. The seals are only 2 mm thin and very strong, and the system works perfectly with recyclable mono-layer PE or PP.

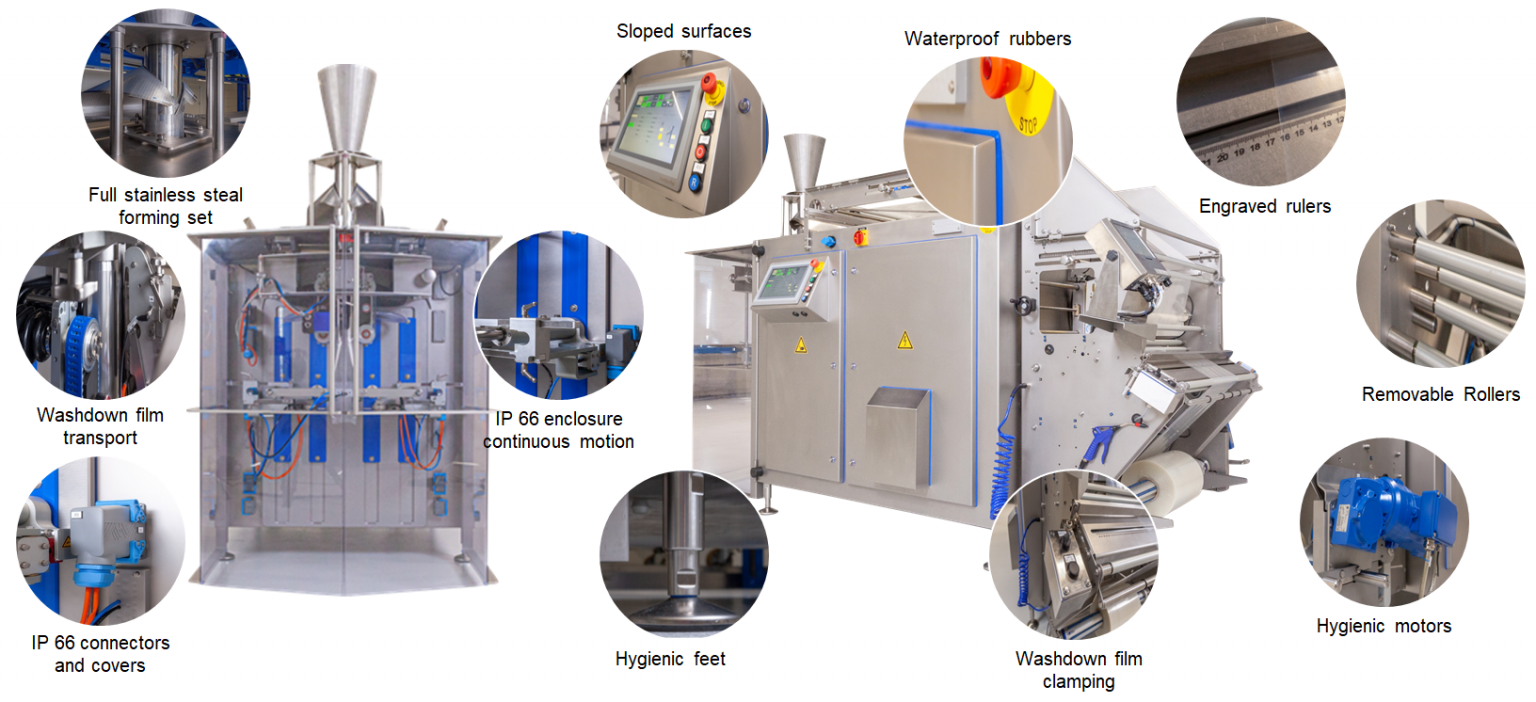

UVA Dynamic Pure Benefits
- An IP55 hosedown VFFS Machine, every exposed part is designed to withstand thorough hosedown cycles
- Sloped surfaces on the sheet metal frame, doors and former set to prevent contamination and bacterial growth
- Stainless steel film carrier, designed with sloped surfaces

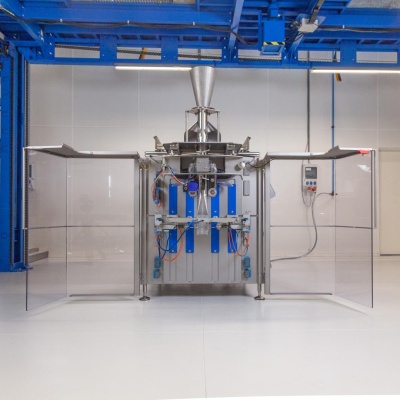

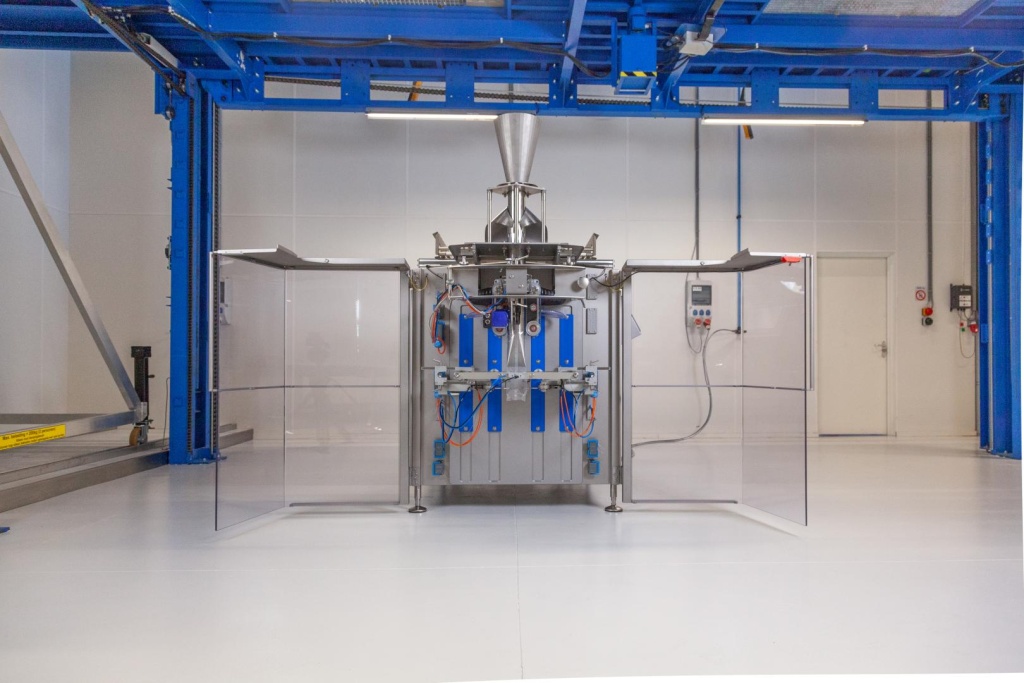

- 180° degree front opening for easy accessibility and cleaning
- Option to expand and upgrade our modular design at any time, for even more bag styles and bag options
- Electro cabinet cooling with hygienic and waterproof rubbers
- Build in touchscreen in an 30 degree angle (IP66) (rotatable and tilt able HMI support optional)
- Optional ceramic sealing bars for improved film use, mono layer film and more safety
- Engraved rulers
- One machine for multiple bag styles and sizes
- Washdown IP66 enclosure for Continuous Motion and Horizontal Motion for gusset blades
- Full stainless steel forming set

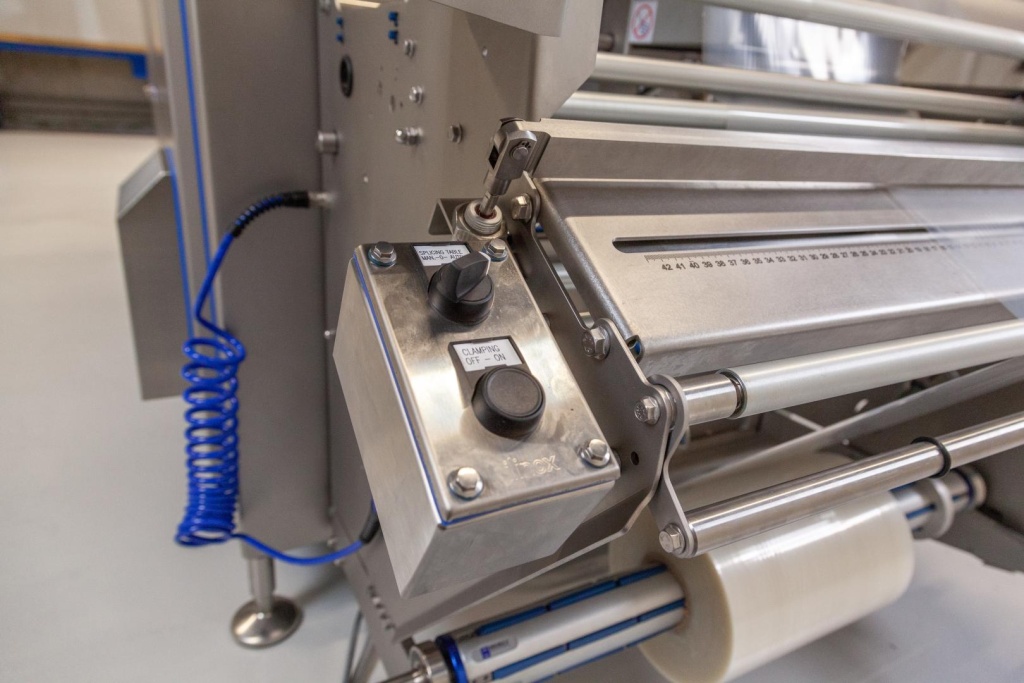

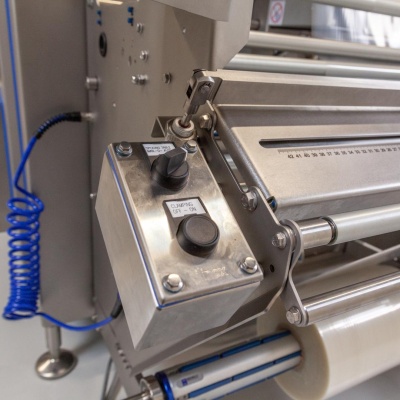

- Washdown splicing table
- Fast and easy film guiding corrections in film web due to spring loaded guiding rollers simple to remove and clean
- Cables guided through the frame, protected from liquid and residues
- The UVA Dynamic Hydro is our washdown (IP66) model
UVA Dynamic Pure Bag Styles and Dimensions
| Bag Designs |  |
 |
 |
 |
 |
 |
 |
|
| Blockbottom | Gusseted | Pillow | Bags with Cornerseal unit: |
Corner Seal |
Cornerseal | Doy Style | Push Pop | |
| Max film width: | 840mm | 840mm | 840mm | 840mm | 840mm | 840mm | 840mm | |
| Max. bag width: | 270mm | 270mm | 400mm | On request | 270mm | 300mm | On request | |
| Min. bag width: | 45mm | 45mm | 50mm | 55mm | 55mm | 55mm | 55mm | |
| Max. bag depth: | 150mm | 150mm | 150mm | 150mm | 100mm | 150mm | ||
| Min. bag depth: | 30mm | 30mm | 44mm | 44mm | 80mm | 60mm | ||
| Max. cut-off length height: | 600mm | 600mm | 600mm | 600mm | 600mm | 300mm | 600mm | |
| Min. cut-off length bag height: | 100mm | 100mm | 60mm | 60mm | 100mm | 100mm | 100mm | |
| Max. CS size: | 6.5mm | 6.5mm | 6.5mm | 6.5mm | ||||
| Min. CS size: | 5mm | 5mm | 5mm | 5mm |
UVA Dynamic Pure Machine Specifications
| Technology | Continious Motion |
| Frame | Closed Stanless Steel Frame |
| Jaw Width | 320 or 400 mm / 12.6 or 15.7 in |

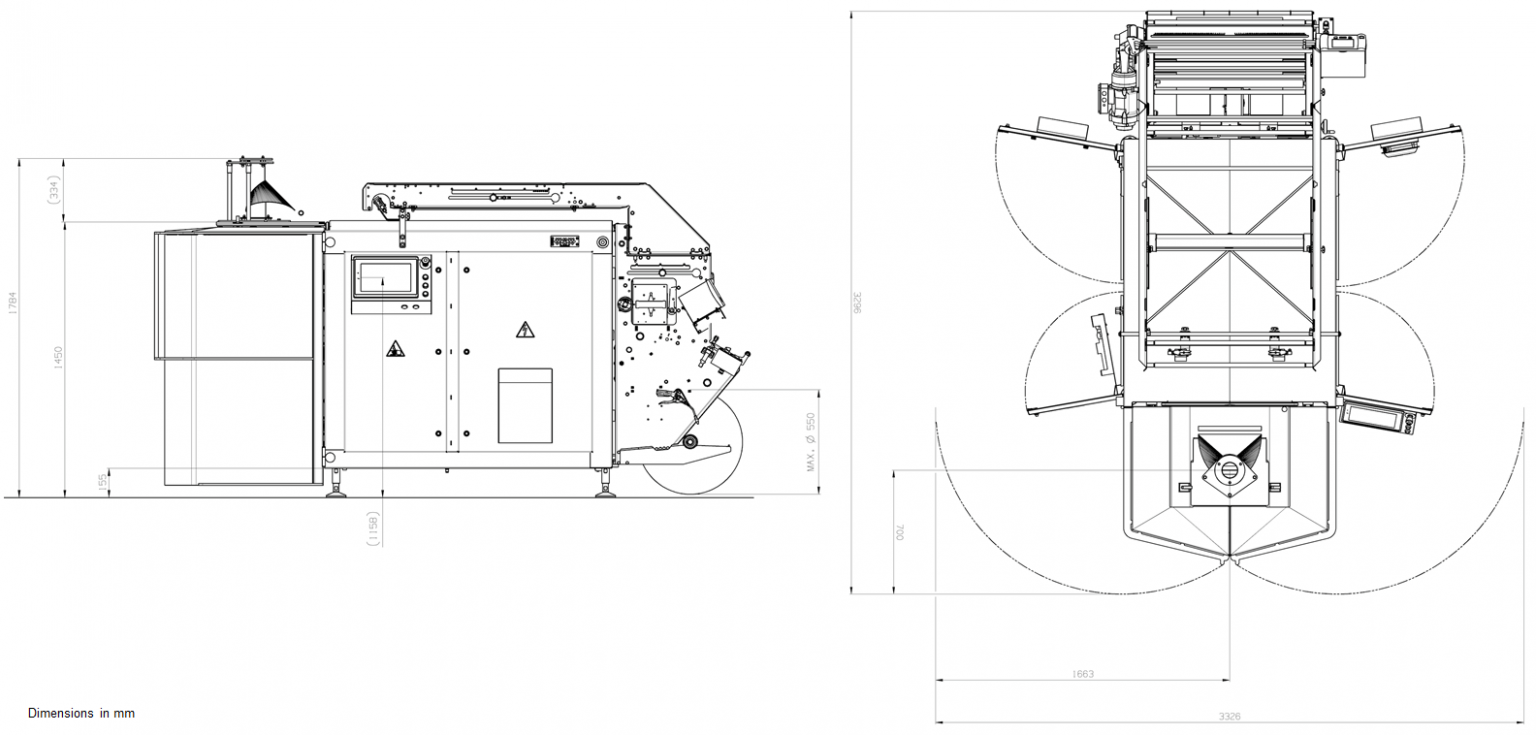

| Machine Dimensions (w/d/h) |
1,500 x 3,256 x 1,655 mm / 59 x 128.2 x 65.2 Inch |
| Machine Weight (Approx.) | 840 kg / 1852 lbs |
| Power Supply | 10 / 12 kVA |
| Control System | Allen Bradley 5500 CompactLogix 12" HMI touch panel |
| Max. Seal Pressure | 6 kN |
| Compressed Air Requirement | 6 bar / 87 psi |
| Mechanical Bag output (BPM) | 150 bags per minute |
| Max. Film Roll diameter | 550 mm / 21.7 inch |
| Max. Film Width | 850 mm / 33.5 inch |
| IP Standard | IP55 Hygenic |
| Sealing Options | Heat seal and optional Ceramic seal |
*The UVA Dynamic Pure is IP55-rated, excluding third-party equipment and peripherals
UVA Dynamic Pure Machine Options
| Modules | Bag style options | Former options |
| Automatic Film Tracking | Cornerseal unit | Dust Extraction |
| Long Seal Cooling | Gusset Mechanism | Inner Filling Tube |
| Printer | Zipper Unit | Gas Flushing Tube |
| Encoder | Easy Opening options | Stainless Steel Former sets |
| Label Applicator | Hole Punch (Euroslot/Sombrero or round) | |
| Splice Detection | Chain bag | |
| Air Deflator | Re-closeable label | |
| Product Catch Plates | ||
| Static Eliminator | ||
| Remote Diagnostics | ||
| Protection Plate above machine | ||
| Ceramic Sealing | ||
| Venturi System (instead of vacuum pump) | ||
| Heat Exchanger | ||
| Stainless steel Film Reel Spindle | ||
| Stainless steel mesh / Perforator Doors |
UVA DYNAMIC RANGE
As with every VDL Packaging bagmaker, we aim to provide the most value in a standard machine, with the continued option to expand and upgrade our modular design at any time. Our brochure outlines how our equipment (based on over 80 years of experience) has now been upgraded to FULL WASHDOWN principles. We have always designed, engineered and manufactured all of our machines ourselves while also relying on best in practice components as from Rockwell Allen Bradley®. We continue to stand behind our innovations and proprietary technology as we’ve always have, and can take complete ownership of your complete packaging project or integrate our VDL Packaging equipment into an existing line.
