PREFORMANCE MEETS PRATICALITY
ENGINEERED FOR EVERY DROP

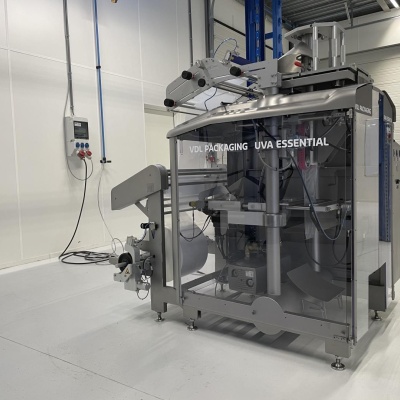

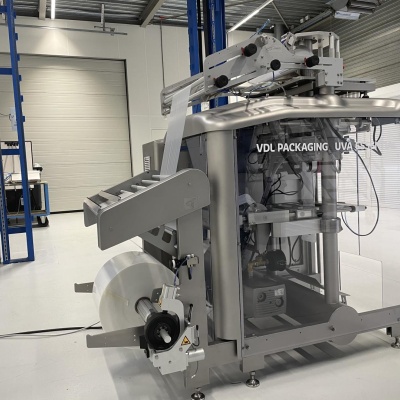

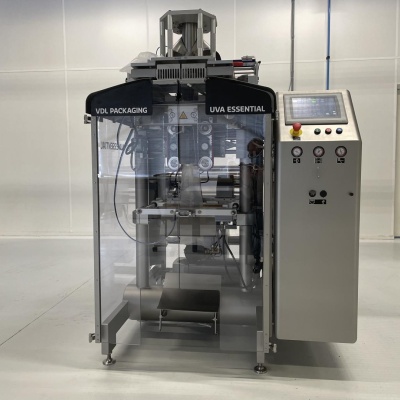

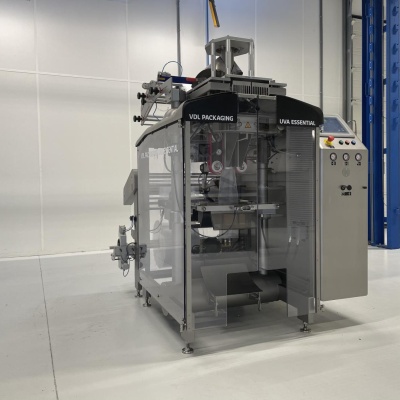

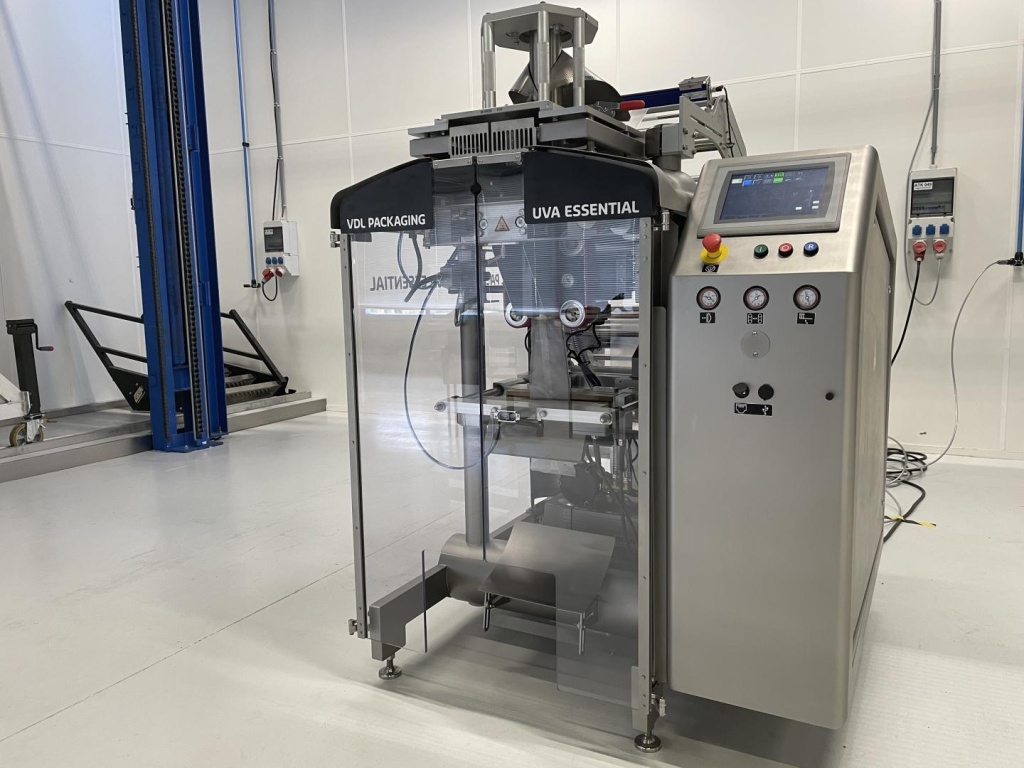

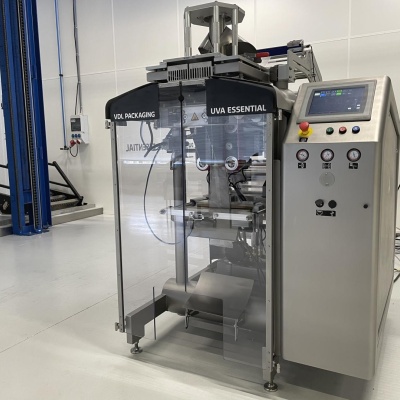

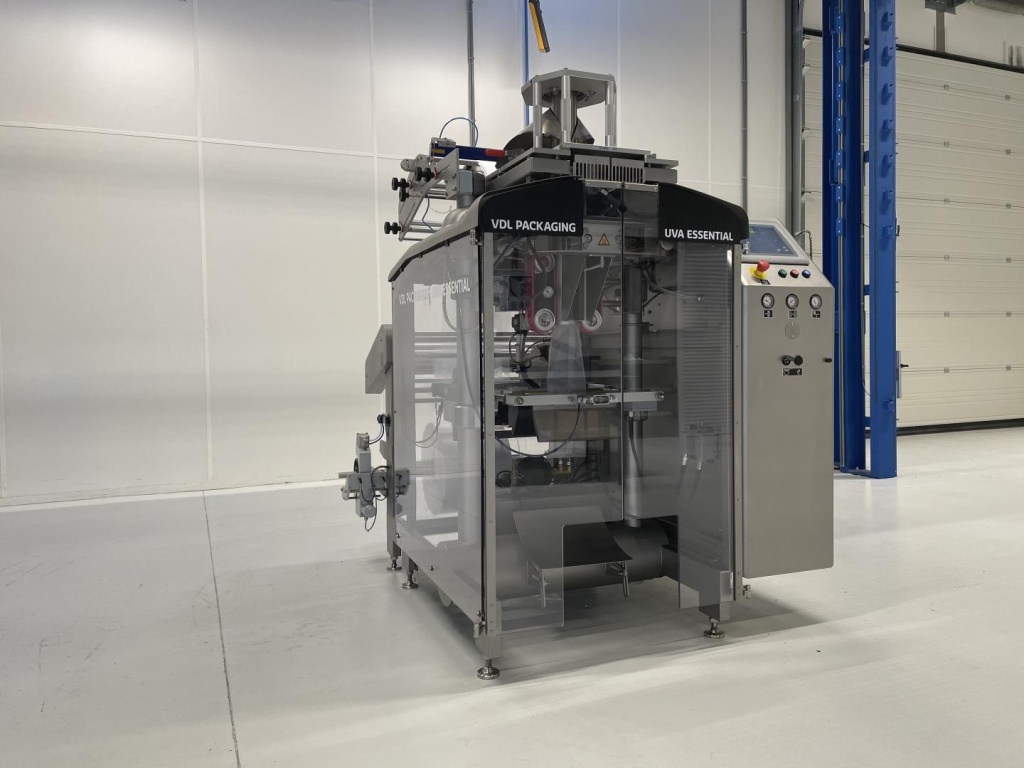

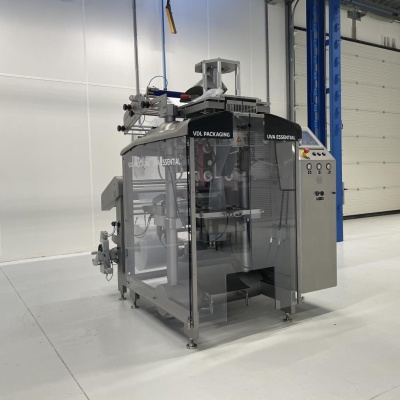

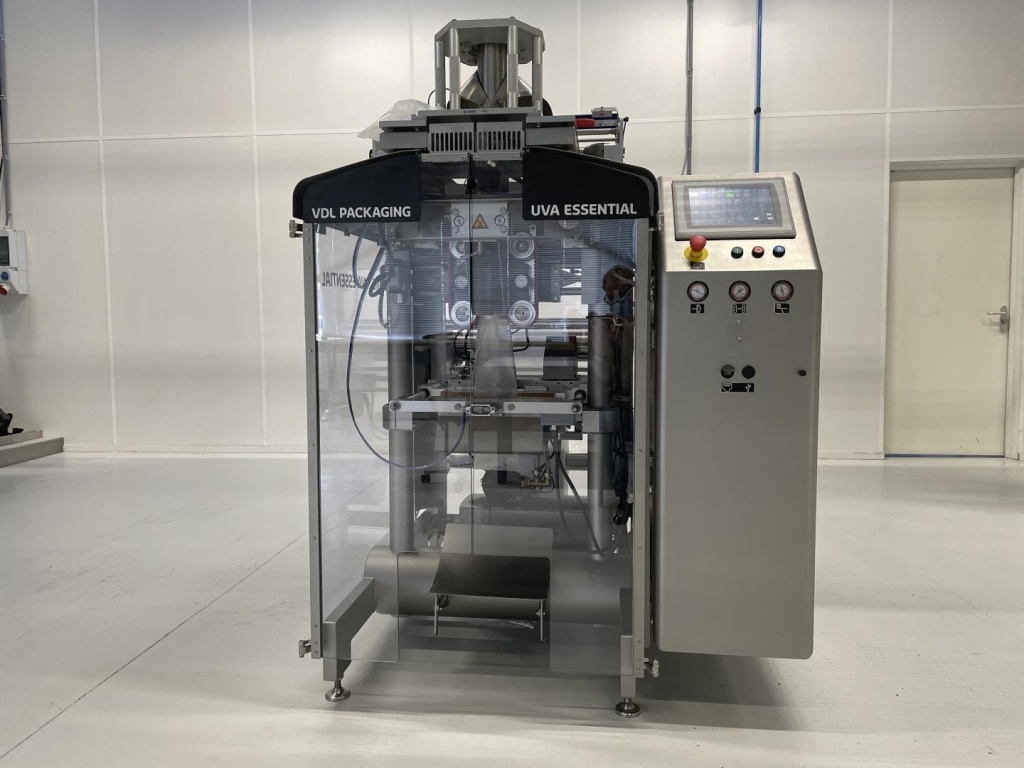

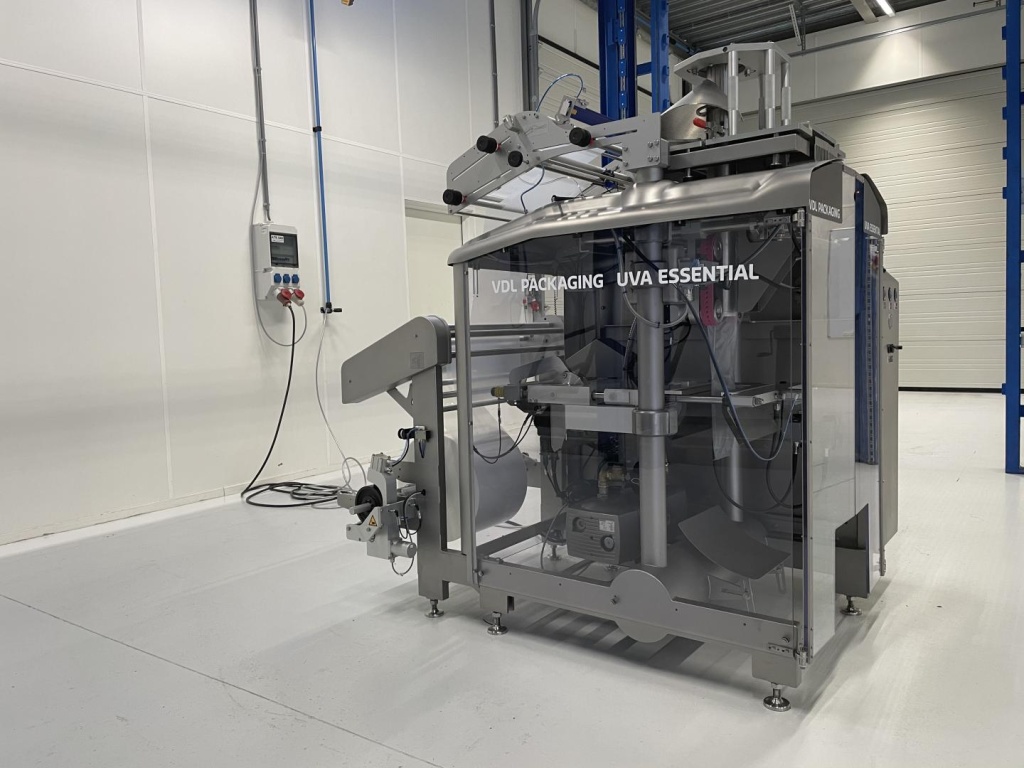

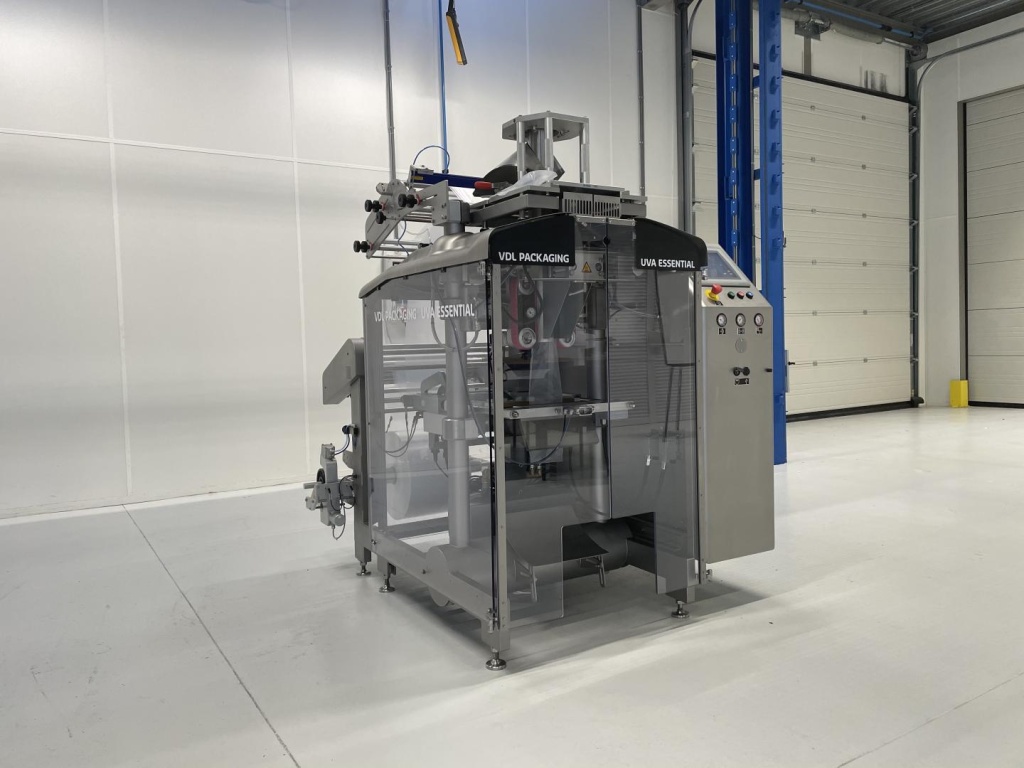

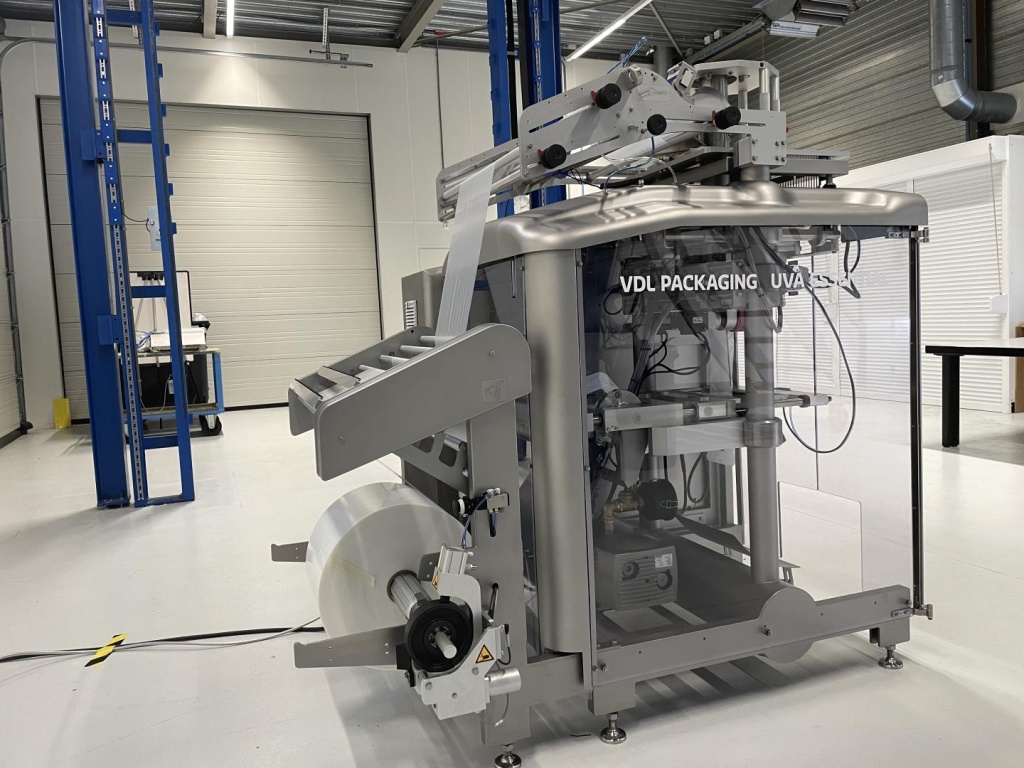

The UVA Essential offers exceptional value for money—designed as the next evolution of the successful Butler 4. We've combined flexibility and simplicity into a compact, stainless steel frame to deliver an outstanding price-to-performance ratio.
Now fully servo-controlled, the UVA Essential ensures precise operation and consistently high-quality bag finishes. Its modular design supports a wide range of sealing technologies and options, making it adaptable to various packaging needs.

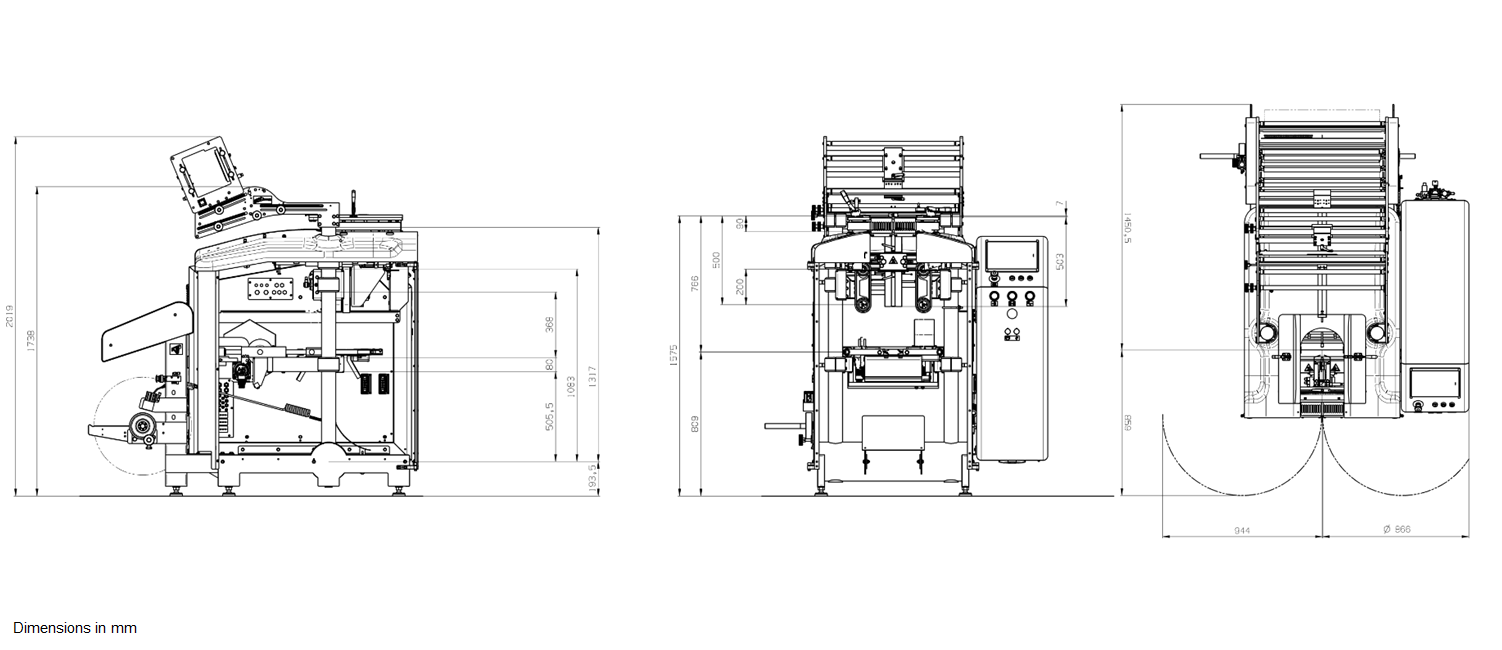

COMPACT FOOTPRINT
NO TOOLS NEEDED
LOW PRICE PER BAG
SUSTAINABLE SEALING
SIMPLIFIED
Our ceramic seal system is a smart step toward sustainability—designed specifically for monolayer PE films to maximize recyclability and reduce environmental impact. Recognizing its value, we’ve made this advanced technology available not only on our premium machines but also on the UVA Essential, our entry-level VFFS solution.
This system delivers clear advantages in cost efficiency, operational safety, and maintenance ease. Its heat impulse technology, combined with water cooling, enables rapid temperature fluctuations within milliseconds—ensuring precise, consistent sealing.
One sealing bar features Ultra Puls Technology with multiple ceramic layers for even heat distribution, while the opposing bar uses silicone rubber to create a clean, airtight cut—without the need for a knife. This knifeless design reduces wear, simplifies maintenance, and significantly minimizes downtime.
With the UVA Essential and ceramic seal system, you gain a future-ready solution that supports your sustainability goals while maintaining the high performance and reliability VDL Packaging is known for.
UVA Essential Benefits
- Redesign of our successful butler 4 model
- High value for your money
- Draw down belt position is servo controlled, for accurate and fast film transport, resulting in higher quality bags
- Interchangeable seal mechanism allows you to change easy from heat seal to ceramic seal
- Electrical cabinet fixed to the machine frame, less feet on the ground improves hygiene
- One machine for multiple bag types, bag styles and sizes
- Stand Alone Cornerseal Unit (SACU) optional for 4 Cornerseal bags & Pushpop bags
- Modular and ergonomic design

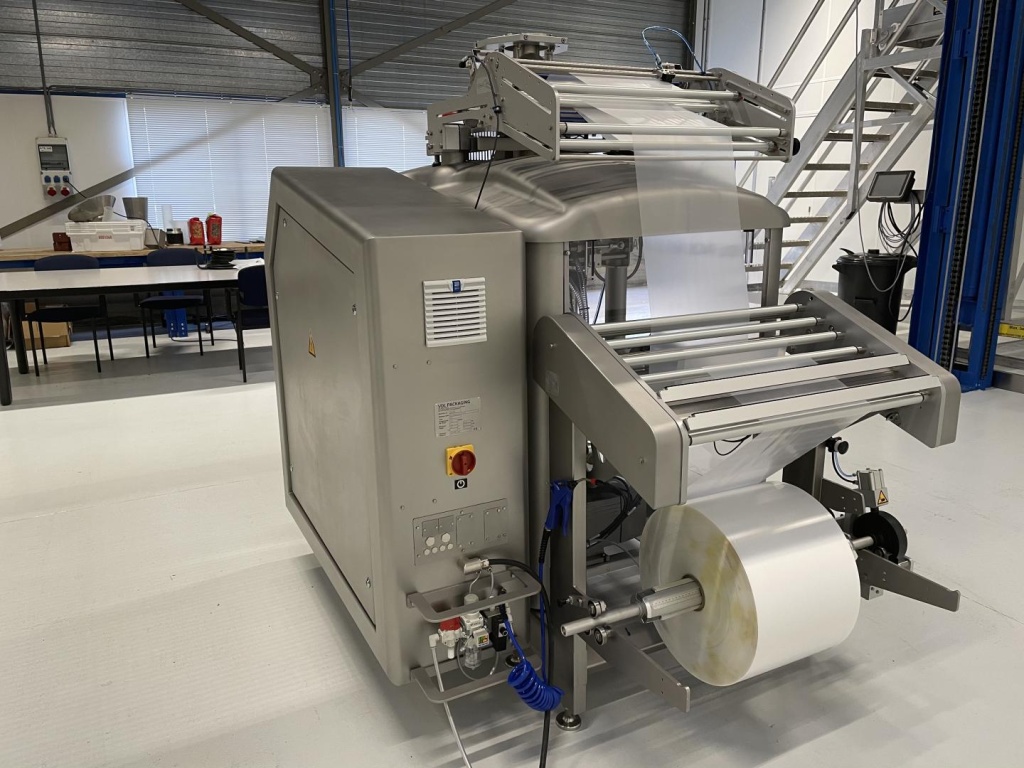

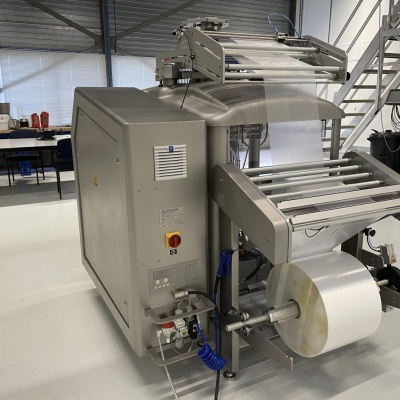

- New standard air clamp film reel shaft, with blow gun, for quick and easy foil change over
- Draw down belts available in friction or vacuum execution
- Great service and quality
- Fast and excellent after sales service
UVA Essential Bag Styles and Dimensions
| Bag Designs |  |
 |
 |
| Blockbottom | Gusseted | Pillow | |
| Max film width: | 670mm | 670mm | 670mm |
| Max. bag width: | 220mm | 220mm | 320mm |
| Min. bag width: | 60mm | 60mm | 50mm |
| Max. bag depth: | 120mm | 120mm | |
| Min. bag depth: | 30mm | 30mm | |
| Max. cut-off length height: | 470mm | 470mm | 470mm |
| Min. cut-off length bag height: | 100mm | 100mm | 100mm |
UVA Essential Specifications
| Modules | Bag style options | Former options |
| Ceramic Sealing | Flat Bottom Bag Assembly | Dust Extraction |
| Automatic Film Tracking | Easy Opening Options | Inner Filling Tube |
| Vacuum Film Transport | Hole Punch (Euro/Sombrero or Round) | Gas Flushing Tube |
| Printer | Chain Bag | |
| Encoder | Reclosable label | |
| Label Applicator | ||
| Splice Detection | ||
| Air Deflator | ||
| Product Catch Plates | ||
| Static Eliminator | ||
| Remote Diagnostics | ||
| Needle Roller | ||
| Isolation Plates on Jaws | ||
| Film Adjustment Roller Driver/Motor | ||
| Single Gas Flushing system, incl. Flow Meter/Sync. |
UVA Essential Ceramic Seal
Optimized for Liquids and Monolayer Films—Seal Smarter, Seal Greener
The ceramic seal system is the ideal solution for packaging liquids and using monolayer films, helping you enhance both sustainability and recyclability of your packaging materials.
At the heart of this system is its precise and rapid temperature control. Thanks to a ceramic-embedded impulse wire and an integrated water cooling system, the cross seal bar can reach temperatures up to 300°C and cool down within milliseconds. This enables ultra-fast sealing cycles and ensures strong, airtight seals—even for challenging liquid products.
The result is a thin, clean seal without excess material or a free skirt, reducing film usage and improving hygiene. It’s a smart, efficient, and eco-conscious sealing solution designed to meet the demands of modern packaging.
UVA ESSENTIAL
SMART AND SIMPLE
By default, the UVA Essential comes equipped with our reliable heat seal technology. For those focused on sustainability, we also offer an optional ceramic seal system—ideal for mono-layer films. Thanks to a user-friendly interchangeable mechanism, switching between sealing systems is quick and easy, giving you the best of both worlds.

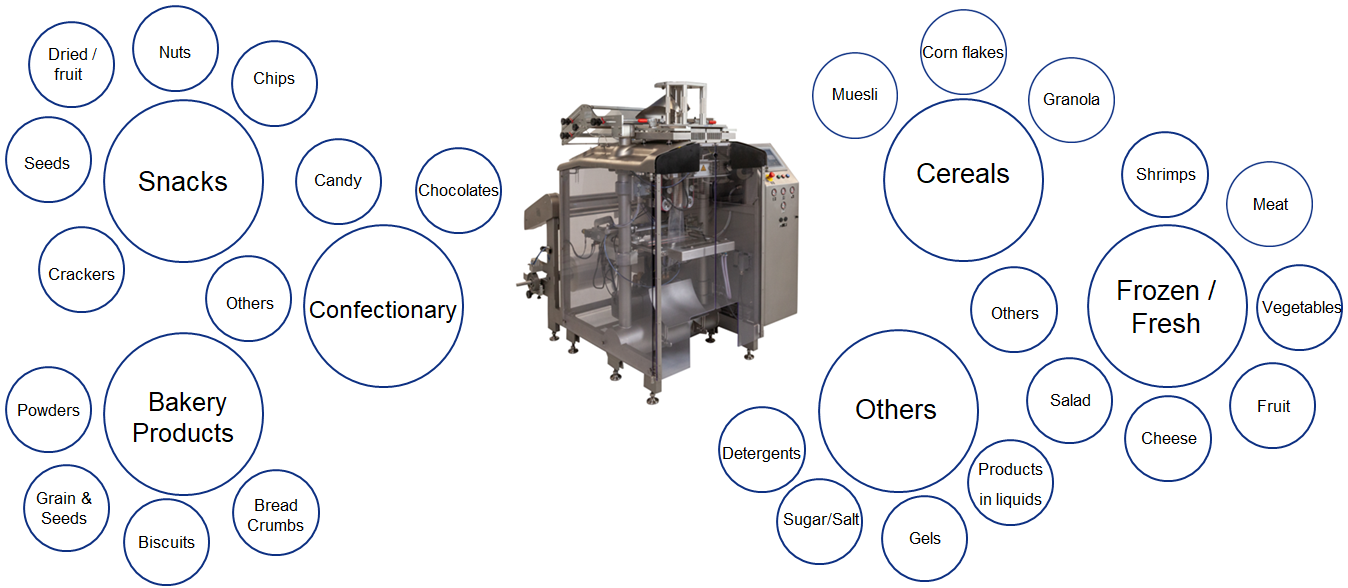

Versatile across multiple markets and bag styles, the UVA Essential is built to meet your production needs while supporting creativity and sustainability goals.
At VDL Packaging, we stand for quality and innovation—developing smart, reliable solutions that deliver high-performance packaging with every cycle.
