BIG ON PERFORMANCE
BUIT FOR PREMIUM

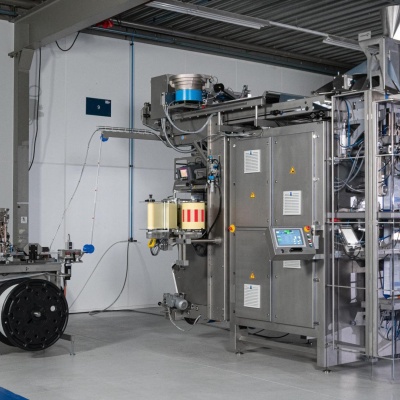

The UVA InMotion 500 is our most advanced intermittent motion bag maker, engineered to package products in medium to large, high-quality bags with a premium look and feel. Designed for standout shelf appeal, it supports features that enhance freshness, reclosability, and ease of handling.
Versatile Across Markets

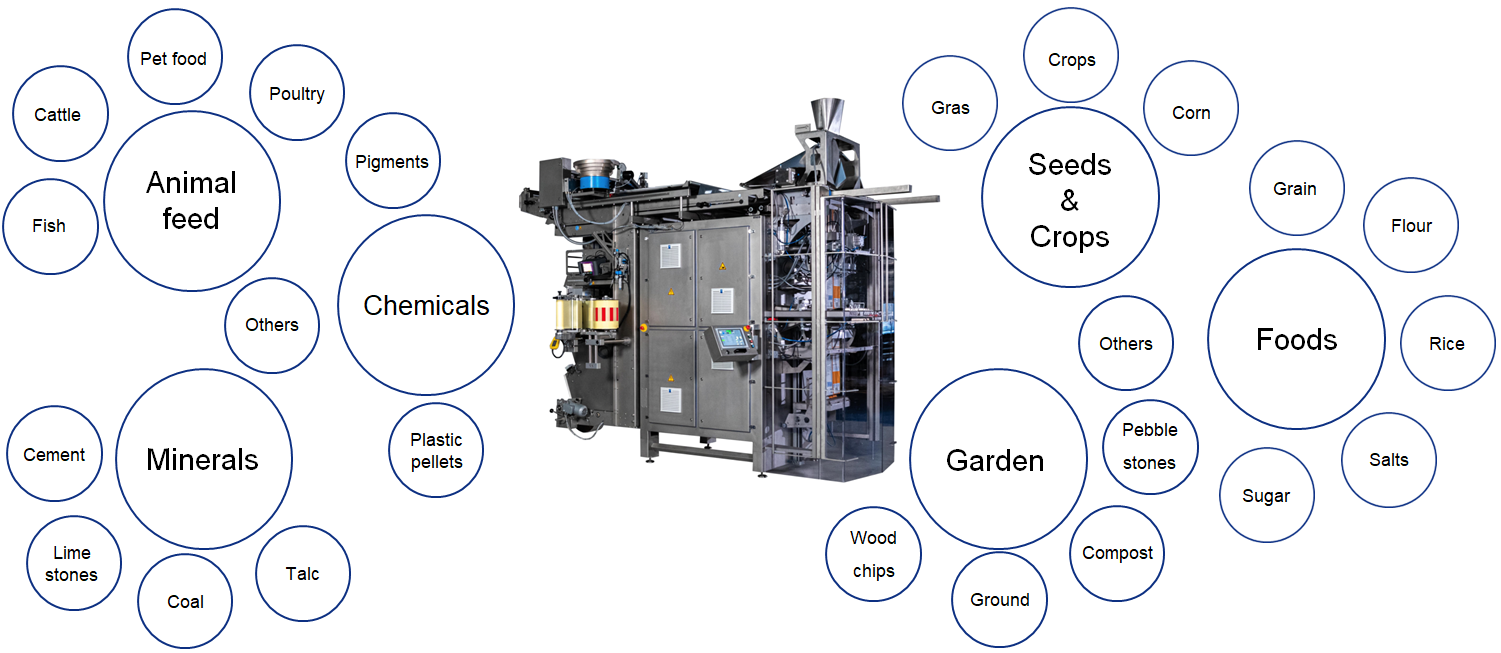

Whether you're in pet food, chemicals, seeds, or food production, the InMotion 500 adapts effortlessly to a wide range of bag styles and sizes—delivering flexibility without compromise.
Tailored to Your Product
We know that packaging is never one-size-fits-all. That’s why we combine decades of experience, a customer-first mindset, and continuous innovation to deliver customized packaging solutions that meet the unique demands of your product and market.
Efficiency That Delivers Value
With the UVA InMotion 500, you gain more than just packaging equipment—you gain a strategic advantage. It’s built to maximize bag value and boost factory output, helping you stay competitive and efficient.
Big bags capable
Widest VFFS film width!
Very fast!
Flexibility
Meets Performance

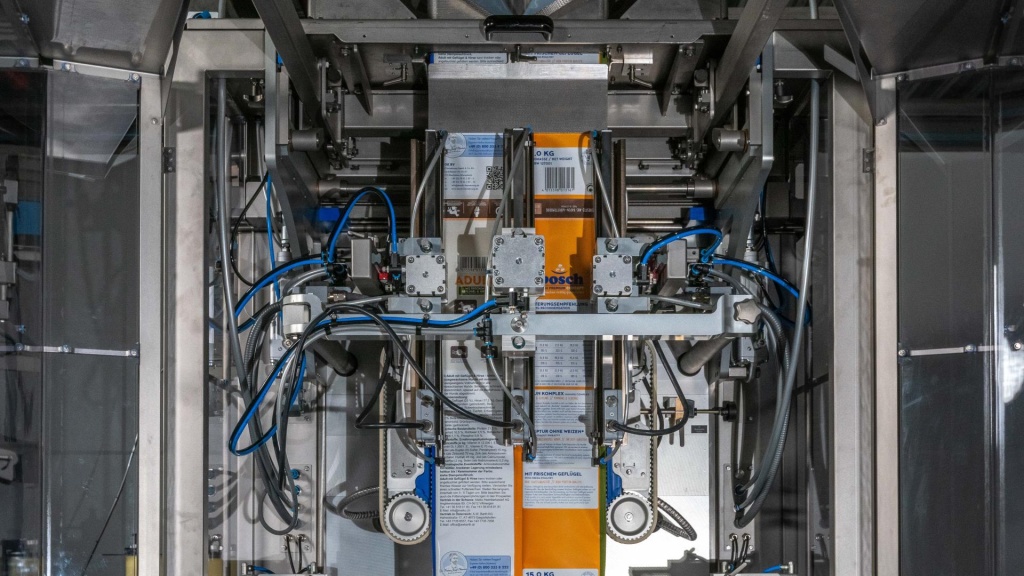

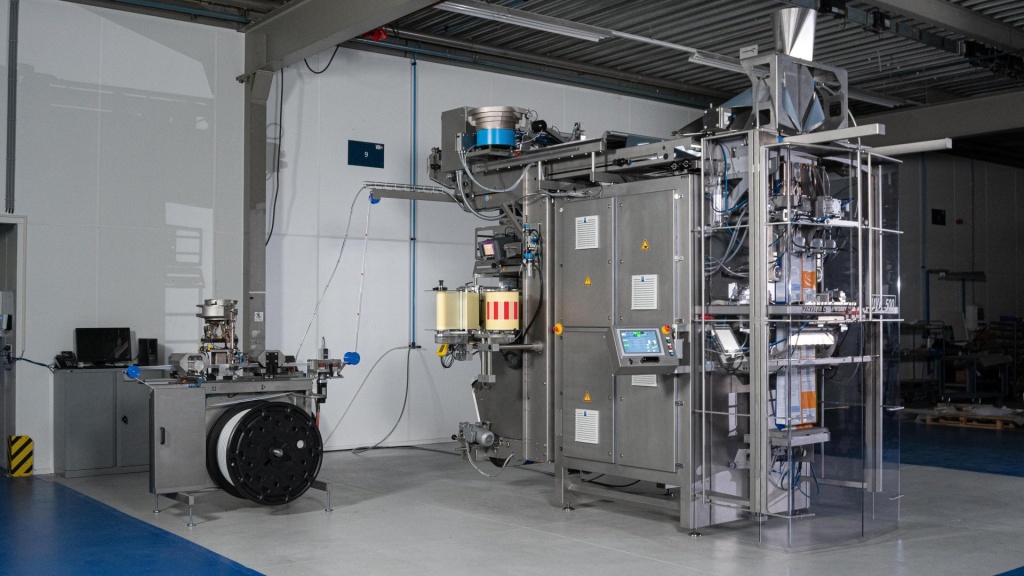

The UVA InMotion 500 is our latest intermittent motion bag maker, purpose-built for customers who demand maximum flexibility in medium to large bag sizes, a wide range of bag styles, and advanced packaging options.
Designed to meet the highest standards in vertical form-fill-seal (VFFS) technology, the UVA InMotion 500 produces premium-quality bags—up to 75 lbs and 45inch in length—that deliver standout shelf appeal, enhanced freshness, and user-friendly handling.
Why Choose the InMotion 500?
- Competes directly with both horizontal and vertical pre-made bag machines
- Offers a smaller footprint, lower capital investment, and reduced cost per bag
- Ideal for premium packaging across industries like pet food, chemicals, seeds, and food
Whether you're upgrading your packaging line or entering new markets, the UVA InMotion 500 helps you maximize bag value and optimize production efficiency—without compromise.
UVA Inmotion 500 Benefits
- Smaller foot print than horizontal open-mouth equipment
- Possible to produce large symmetric and asymmetric Block Bottom or Corner Seal Bags up to 35 kilograms
- High performance up to 40 bpm with single pull without zip
- Premium high quality bags, with lower material cost compared to pre-made bags

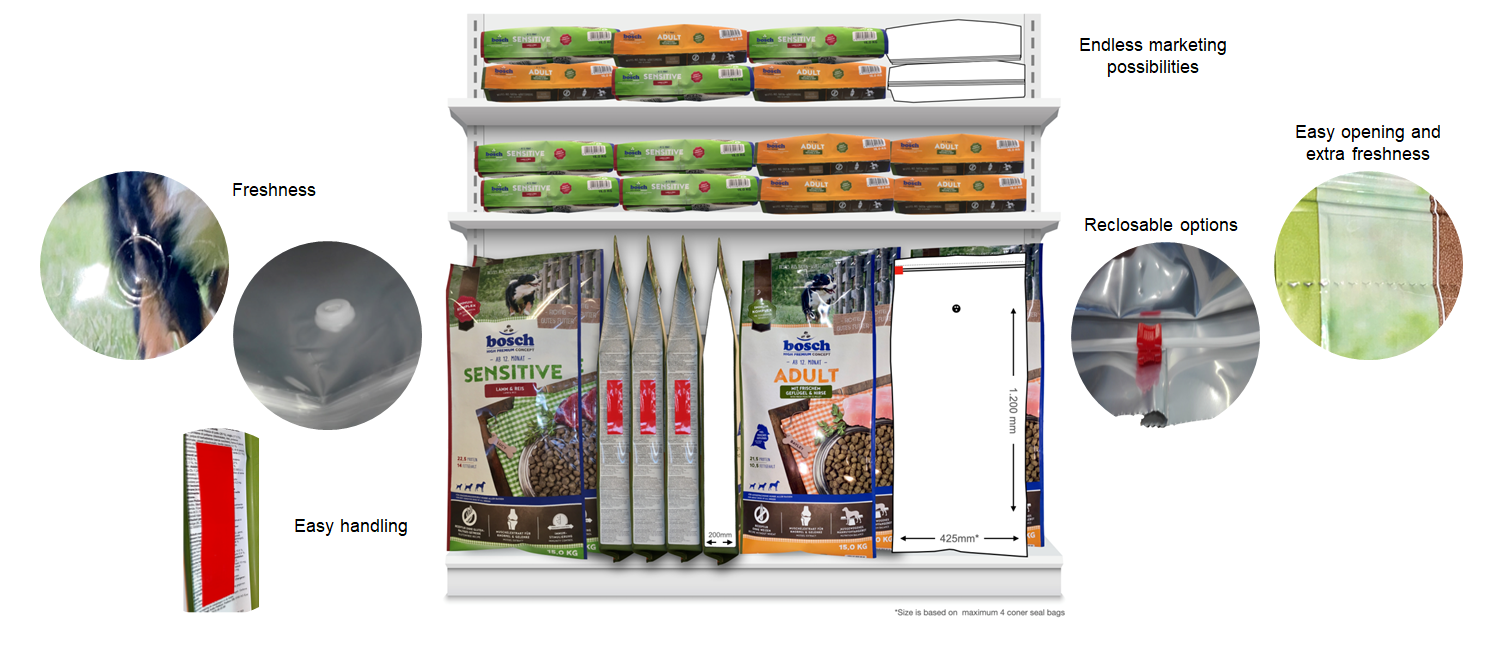

- Enormous flexibility in features, for extra product freshness, easy bag handling, optimum shelf presentation and bag style variety
- Flexibility in your choice for any zipper manufacturer

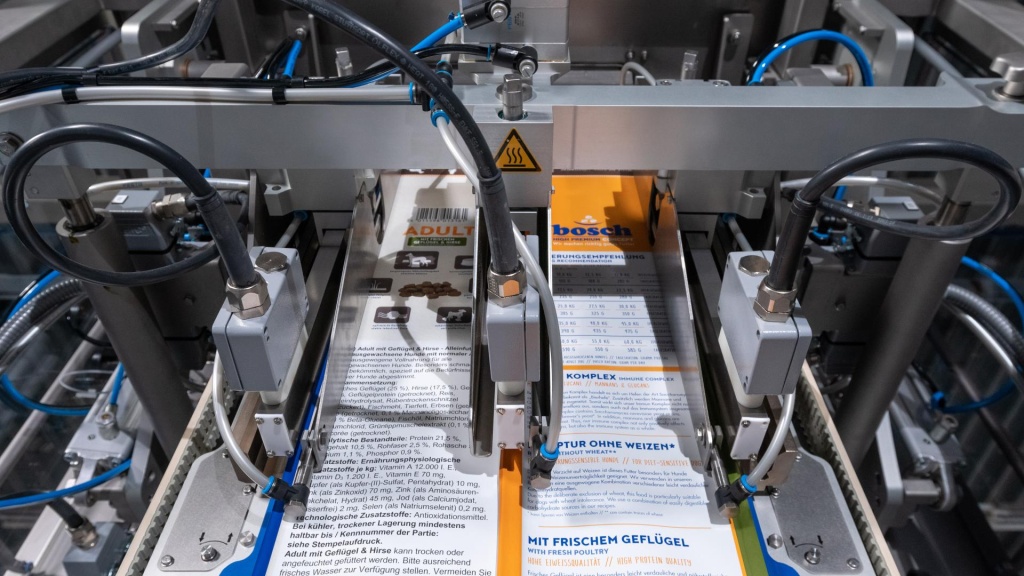

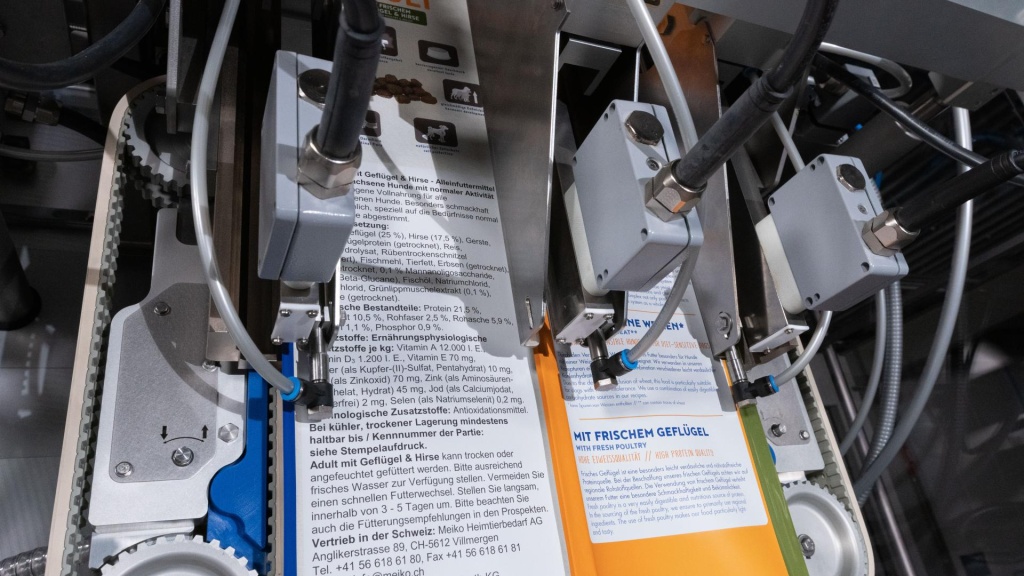

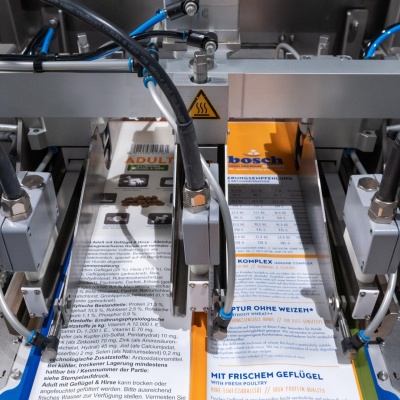

- Multiple zipper executions available, press to close (P2C), slider zip, Velcro or Aplix (hook to hook closures)
- Transverse zipper applicator, for accurate zipper position reducing frowning and smiling, for optimum reclose ability and thus product freshness.
- Maximum film width of 1.350 mm
- Maximum bag length up to 1.200 mm
- Modular and ergonomic design
- Great service and quality
- Excellent and fast after sales service
UVA Inmotion 500 Bag Styles
| Bag Designs |  |
 |
 |
 |
 |
|
| Blockbottom | Gusseted | Pillow | Bags with Cornerseal unit: |
Corner Seal |
Cornerseal | |
| Max film width: | 1350mm | 1350mm | 1350mm | 1350mm | 1350mm | |
| Max. bag width: | 450mm | 450mm | 500mm | 425mm | 425mm | |
| Min. bag width: | 180mm | 180mm | 250mm | 180mm | 180mm | |
| Max. bag depth: | 200mm | 200mm | 200mm | 200mm | ||
| Min. bag depth: | 70mm | 70mm | 80mm | 80mm | ||
| Max. cut-off length height, Single pull | 600mm | 600mm | 600mm | 600mm | 600mm | |
| Max. cut-off length height, Double pull | 1200mm | 1200mm | 1200mm | 1200mm | 1200mm | |
| Min. cut-off length bag height: | 100mm | 100mm | 100mm | 100mm | 100mm | |
| Max. CS size: | 12mm | 12mm | ||||
| Min. CS size: | 7mm | 7mm |
UVA Inmotion 500 Specifications
| Technology | Intermittent Motion |
| Frame | Stanless Steel Frame |
| Jaw Width | 500 mm / 19.7 in |

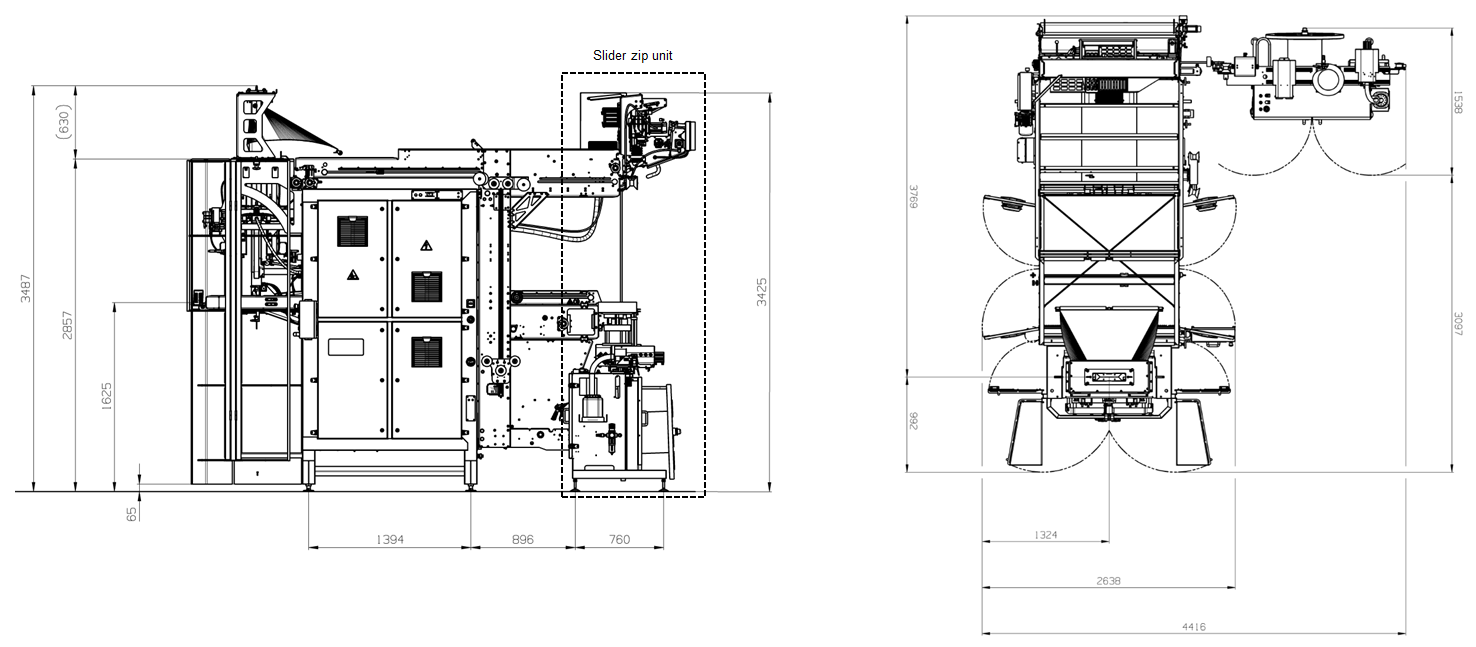

| Machine Dimensions (w/d/h) |
2,500 x 4,750 x 2,857 mm (with zip unit, H= 3,700 mm) |
| Machine Weight (Approx.) | 3,000 kg / 6614 lbs |
| Power Supply | 2.5 kVA (400 V, three phase, 50/60 Hz., 35A |
| Control System | Allen Bradley 5500 CompactLogix 12" HMI touch panel |
| Max. Seal Pressure | 12 kN |
| Compressed Air Requirement | 6 bar / 87 psi |
| Mechanical Bag output (BPM) | 12 - 40 bags per minute |
| Max. Film Roll diameter | 700 mm / 27.6 in |
| Max. Film Width | 1,350 mm / 53.1 in |
| IP Standard | IP54* |
| Sealing Options | Heat seal / Poly heat seal |
*The UVA InMotion 500 is IP54-rated, excluding third-party equipment and peripherals
UVA Inmotion 500 Options
| Modules | Bag style options | Former options |
| Automatic Film Tracking | Cornerseal unit | Dust Extraction |
| Cross and Long Seal Cooling | Carry Handle | Inner Filling Tube |
| Printer | Valve Applicator | Gas Flushing Tube |
| Encoder | Gusset Mechanism | Former set Release Module |
| Label Applicator | Zipper Unit | |
| Splice Detection | ||
| Air Deflator | ||
| Product Catch Plates | ||
| Cooling Corner Seals | ||
| Bottom Fold Unit | ||
| Barcode Scanner | ||
| Bag Lifter / Tilter with Weight Compensation |
ENDLESS POSSIBILITIES,
BIG IMPACT
VDL Packaging's UVA InMotion 500 is able to create multiple bag styles,
such as symmetric and asymmetric four-corner seal bags, with various
foil choices (including sustainable options) and a wide spectrum of zipper
options, including press-to-close and slider zips.
The UVA InMotion 500 excels thanks to its efficient vertical design, which
results in a small footprint and a minimum of required maintenance, giving
it a low TCO.
The combination of a solid, low-maintenance, vertical design, recloseability
options, sustainable foil choices, and options for extra product freshness
ensures that the UVA InMotion 500 is ready to create the packaging of
the future!
